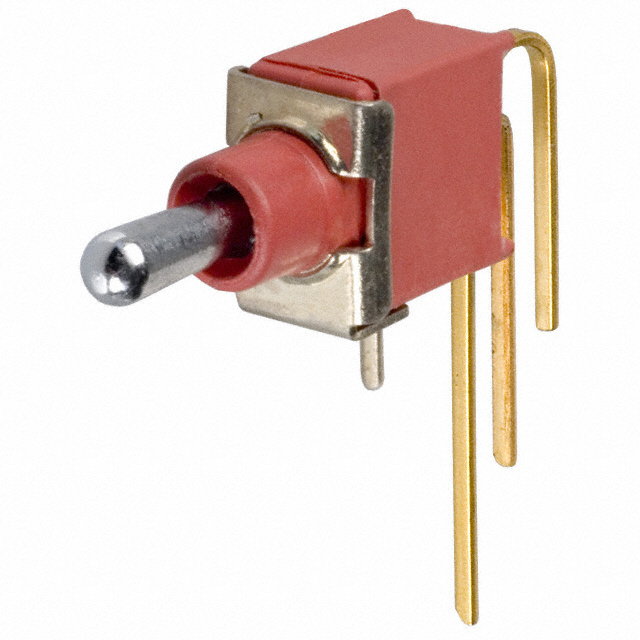

Switch Toggle ON None ON SPDT Round Lever PC Pins 3A 120VAC 28VDC 0.4VA PC Mount with Bracket
The sealed toggle switch from C&K Components allows you to control the status of your project. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 120VAC 28VDC. This toggle switch has an operating temperature range of -30 °C to 85 °C. The ET01MD1AVGE toggle switch has a PC pin termination style. This product is 6.22 mm long, 8.77 mm tall and 25.21 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
额定电流 3.00 A
绝缘电阻 10000 MΩ
排数 1
额定功率 0.4 VA
触点类型 SPDT
额定电流Max 3A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 6.22 mm
高度 8.77 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
