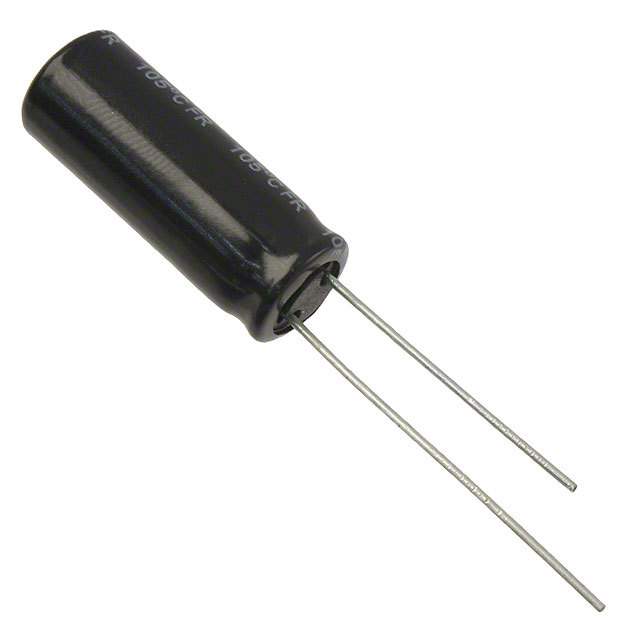

EEU-FR1V471LB

EEU FR 系列 35 V 470 uF 8x20mm LS=5mm 低阻抗 卷链 9000小时 电解电容

铝电解器 径向，Can - 105°C 时为 9000 小时

得捷:
CAP ALUM 470UF 20% 35V RADIAL

e络盟:
PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V471LB  ALUMINUM ELECTROLYTIC CAPACITOR, 470UF, 35V, 20%, RADIAL

艾睿:
This electrolytic EEU-FR1V471LB aluminum capacitor from Panasonic has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 8 mm. The EEU-FR1V471LB aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 470uF. Its leakage current is 164.5@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V471LB  Electrolytic Capacitor, 470 µF, 35 V, FR Series, ± 20%, Radial Leaded, 8 mm

MASTER:
Cap Aluminum Lytic 470uF 35V 20% 8 X 20mm Radial 5mm 1560mA 9000h 105°C Ammo

Online Components:
Cap Aluminum Lytic 470uF 35V 20% 8 X 20mm Radial 5mm 1560mA 9000h 105°C Ammo

Electro Sonic:
Cap Aluminum Lytic 470uF 35V 20% 8 X 20mm Radial 5mm 1560mA 9000h 105°C Ammo
