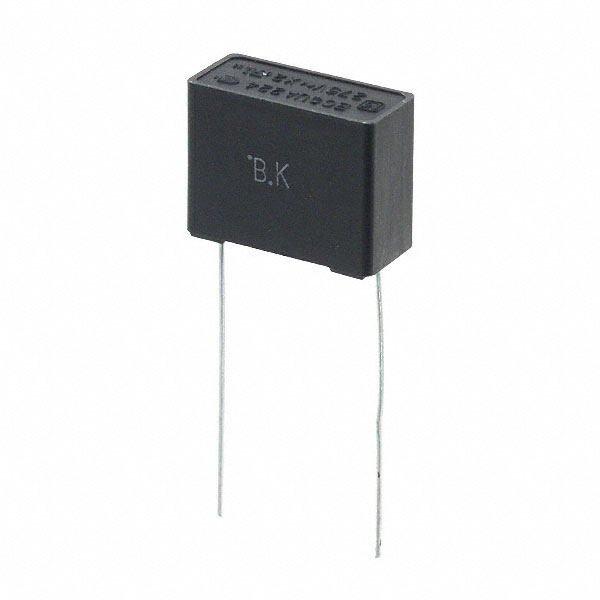

PANASONIC ELECTRONIC COMPONENTS ECQ-UAAF224K 电容, 聚酯膜, 0.22uF, 275VAC, ±10%, 径向引线
Cap Film Suppression X2 0.22uF 275VAC PP 10% 17.5 X 7.5 X 14mm Radial Plastic Rectangular Can 15mm 110°C Bulk
立创商城:
等级:X2 220nF ±10% 275VAC
得捷:
CAP FILM 0.22UF 10% 275VAC RAD
艾睿:
Cap Film Suppression X2 0.22uF 275VAC PP 10% 17.5 X 7.5 X 14mm Radial Plastic Rectangular Can 15mm 110°C Bulk
Chip1Stop:
Cap Film Suppression X2 0.22uF 275VAC PP 10% 17.5 X 7.5 X 14mm Radial 15mm 110C Bulk
Newark:
# PANASONIC ELECTRONIC COMPONENTS ECQ-UAAF224K Film Suppression Capacitor, 0.22 µF, 275 VAC, ECQUA Series, ± 10%, Radial Leaded, X2
MASTER:
Cap Film Suppression X2 0.22uF 275VAC PP 10% 17.5 X 7.5 X 14mm Radial Plastic Rectangular Can 15mm 110°C Bulk
Online Components:
Cap Film Suppression X2 0.22uF 275VAC PP 10% 17.5 X 7.5 X 14mm Radial Plastic Rectangular Can 15mm 110°C Bulk
Electro Sonic:
Cap Film Suppression X2 0.22uF 275VAC PP 10% 17.5 X 7.5 X 14mm Radial Plastic Rectangular Can 15mm 110°C Bulk
额定电压AC 275 V
电容 0.22 µF
容差 ±10 %
工作温度Max 110 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 15 mm
长度 17.5 mm
宽度 7.5 mm
高度 14 mm
脚长度 20 mm
封装 Radial, Box
引脚间距 15 mm
介质材料 Polyester
工作温度 -40℃ ~ 110℃
产品生命周期 Unknown
包装方式 Each
制造应用 EMI，RFI 抑制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532250010
