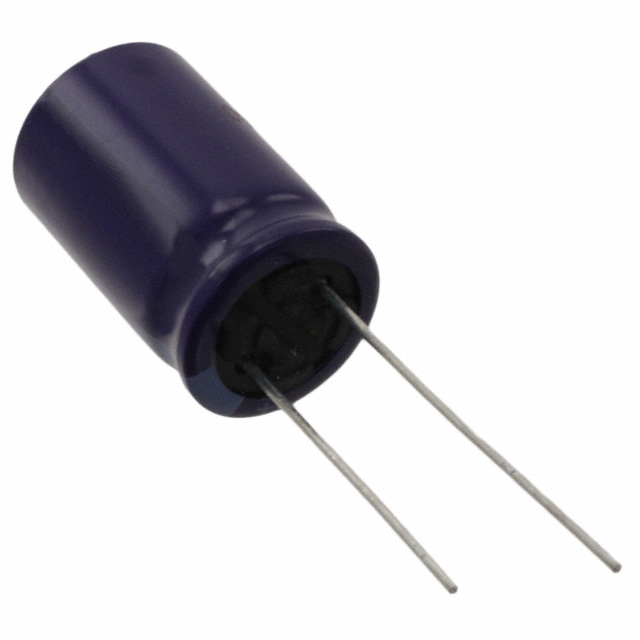

ECA-2CM221

Cap Aluminum Lytic 220uF 160V 20% 16 X 31.5mm Radial 7.5mm 830mA 2000H 85℃ Bulk

Cap Aluminum Lytic 220uF 160V 20% 16 X 31.5mm Radial 7.5mm 830mA 2000h 85°C Bulk

立创商城:
220uF ±20% 160V

艾睿:

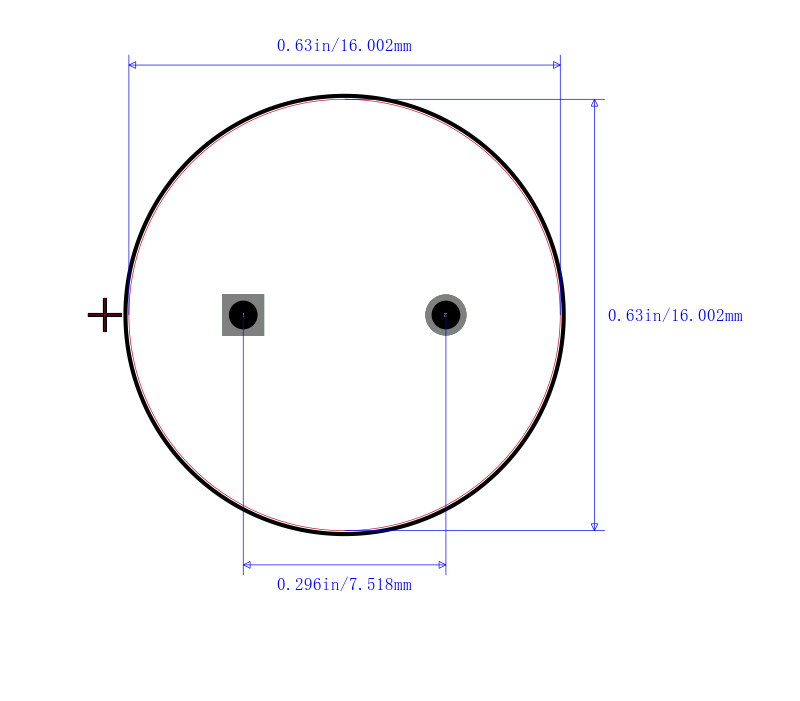

Panasonic has you covered with their pure aluminum electrolytic ECA-2CM221 electrolytic capacitor, designed to filter out lower frequencies. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. The ECA-2CM221 aluminum electrolytic capacitor has a radial termination style. This product is 31.5 mm tall with a diameter of 16 mm. Its capacitance value is 220uF. Its leakage current is 2122@2Min μA.

Chip1Stop:
Cap Aluminum Lytic 220uF 160V 20% 16 X 31.5mm Radial 7.5mm 830mA 2000h 85C Bulk

Verical:
Cap Aluminum Lytic 220uF 160V 20% 16 X 31.5mm Radial 7.5mm 830mA 2000h 85C Automotive Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ECA-2CM221  Electrolytic Capacitor, 220 µF, 160 V, M Series, ± 20%, Radial Leaded, 16 mm

MASTER:
Cap Aluminum Lytic 220uF 160V 20% 16 X 31.5mm Radial 7.5mm 830mA 2000h 85°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 220uF 160V 20% 16 X 31.5mm Radial 7.5mm 830mA 2000h 85°C Automotive Bulk
