EXB-24V273JX

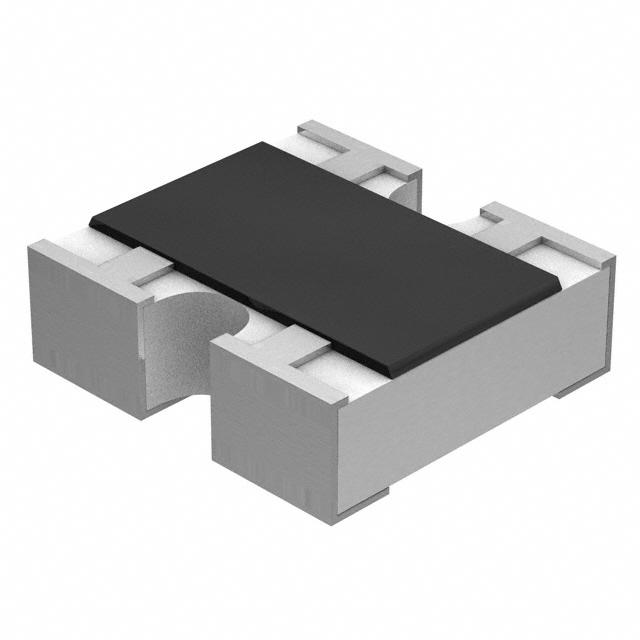

EXB-24V273JX图片1
EXB-24V273JX图片2
EXB-24V273JX图片3
EXB-24V273JX概述

Res Thick Film Array 27KΩ 5% 200ppm/℃ ISOL Molded 4Pin 04042 X 0402 Convex SMD Automotive T/R

is manufactured by and is categorized in the Resistor Networks, Arrays category. EXB-24V273JX is described as RES ARRAY 2 RES 27K OHM 0404. Perfect Parts is a supplier of Resistors and other Passives.


得捷:
RES ARRAY 2 RES 27K OHM 0404


立创商城:
27kΩ ±5%


艾睿:
Res Thick Film Array 27K Ohm 5% ±200ppm/°C ISOL Molded 4-Pin 04042 X 0402 Convex SMD Automotive T/R


Chip1Stop:
Res Thick Film Array 27K Ohm 5% ±200ppm/C ISOL Molded 4-Pin 04042 X 0402 Convex SMD Punched Carrier T/R


Verical:
Res Thick Film Array 27K Ohm 5% ±200ppm/C ISOL Molded 4-Pin 04042 X 0402 Convex SMD Automotive T/R


Electro Sonic:
Res Thick Film Array 27K Ohm 5% ±200ppm/°C ISOL 4-Pin 04042 X 0402 Convex SMD Automotive T/R


Win Source:
RES ARRAY 2 RES 27K OHM 0404


EXB-24V273JX中文资料参数规格
技术参数

触点数 4

额定电压DC 100 V

容差 ±5 %

电阻 27 KΩ

阻值偏差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 4

封装公制 1005

封装 0404

外形尺寸

长度 1 mm

宽度 1 mm

高度 0.35 mm

封装公制 1005

封装 0404

厚度 350 µm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

制造应用 汽车级 AEC-Q200, 汽车级AEC-Q200

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买EXB-24V273JX
型号: EXB-24V273JX
制造商: Panasonic 松下
描述:Res Thick Film Array 27KΩ 5% 200ppm/℃ ISOL Molded 4Pin 04042 X 0402 Convex SMD Automotive T/R
