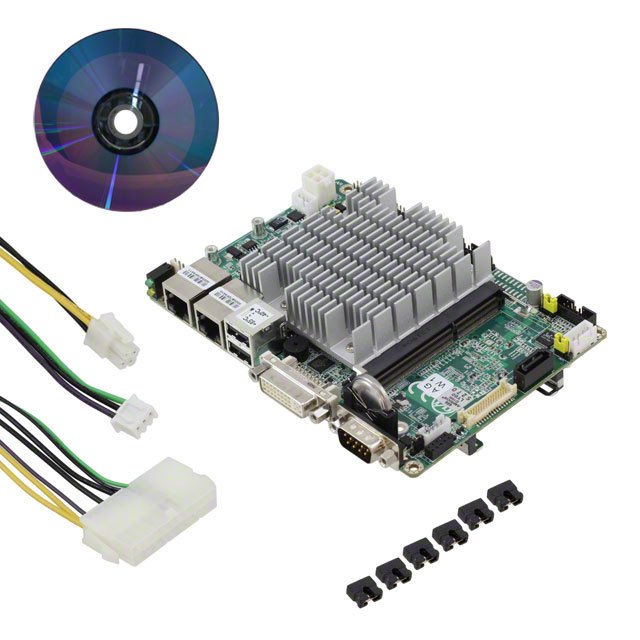

EASYBOARD-650E

频率 1.6 GHz

工作温度Max 85 ℃

工作温度Min -40 ℃

Series -

Operating-Temperature -40°C ~ 85°C

Size-Dimension 5.7" x 4" 146mm x 102mm

Power-Watts -

Speed 1.6GHz

Core-Processor Atom N2600

Ethernet PCIe GbE

USB USB 2.0 6

Number-of-Cores 1

Cooling-Type -

Form-Factor -

Expansion-Site-Bus Mini-card

RAM-Capacity-Installed 2GB/0GB

Storage-Interface SATA, CFast socket

Video-Outputs DVI, GMA 3650, LVDS, RGB

Digital-I-O-Lines 8

Watchdog-Timer Yes

数据手册
