ERJ3RQF3R3V

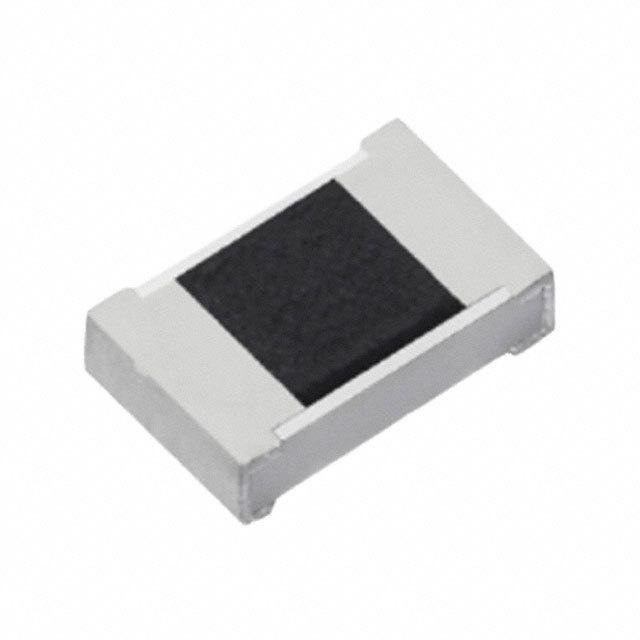

PANASONIC ELECTRONIC COMPONENTS  ERJ3RQF3R3V  电流感应电阻器, 表面安装, AEC-Q200 ERJ系列, 3.3 ohm, 100 mW, ± 1%, 0603 [1608公制]

The ERJ 3R series resistors are automotive grade, standard current sensing chip resistors with low resistance values. The resistance range includes E24 decade values from 5mohm to 9.1ohm. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.

.

EIA 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 case sizes available

.

Small size, low weight resistors

.

Automotive grade AEC-Q200 compliant

.

Maximum power rating of 1W

.

Available in ±1%, ±2% and ±5% tolerance

.

0 to 300, 0 to 500, 0 to 700, ±75, ±100, ±150, ±200, ±250, ±300ppm/°C TCR values available

.

Operating temperature range -55°C to 125°C

.

Meets IEC 60115-8, JIS C 5201-8, JEITA RC-2144 standards

.

Suitable for both reflow and flow soldering
