ERJ-14YJ1R8U概述

Res Thick Film 1210 1.8Ω 5% 0.5W1/2W -100ppm/℃ to 600ppm/℃ Molded SMD SMD Embossed Carrier T/R

Res Thick Film 1210 1.8 Ohm 5% 0.5W1/2W -100ppm/°C to 600ppm/°C Pad SMD Automotive T/R


得捷:
RES SMD 1.8 OHM 5% 1/2W 1210


艾睿:
Use this ERJ-14YJ1R8U fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 1.8 Ohm. Its temperature coefficient is -100 to 600 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. This product is 3.2 mm long, 0.6 mm tall and 2.5 mm deep. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.


立创商城:
1.8Ω ±5% 500mW


Verical:
Res Thick Film 1210 1.8 Ohm 5% 0.5W1/2W -100ppm/C to 600ppm/C Molded SMD Automotive T/R


MASTER:
Res Thick Film 1210 1.8 Ohm 5% 0.5W1/2W -100ppm/°C to 600ppm/°C Pad SMD Automotive T/R


Online Components:
Res Thick Film 1210 1.8 Ohm 5% 0.5W1/2W -100ppm/°C to 600ppm/°C Pad SMD Automotive T/R


Electro Sonic:
Res Thick Film 1210 1.8 Ohm 5% 0.5W1/2W -100ppm/°C to 600ppm/°C Pad SMD Automotive T/R


ERJ-14YJ1R8U中文资料参数规格
技术参数

额定电压DC 200 V

容差 ±5 %

额定功率 0.5 W

电阻 1.8 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3225

封装 1210

外形尺寸

长度 3.20 mm

宽度 2.50 mm

高度 0.6 mm

封装公制 3225

封装 1210

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -100ppm/℃ ~ 600ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

ERJ-14YJ1R8U引脚图与封装图

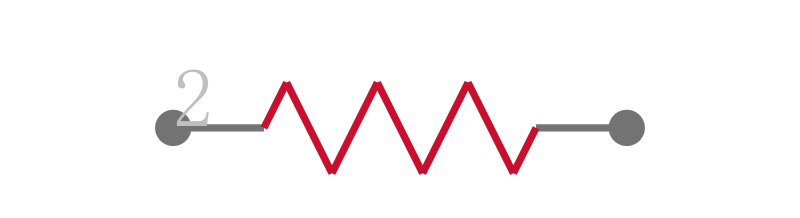

ERJ-14YJ1R8U引脚图
ERJ-14YJ1R8U封装图
ERJ-14YJ1R8U封装焊盘图
在线购买ERJ-14YJ1R8U
型号: ERJ-14YJ1R8U
制造商: Panasonic 松下
描述:Res Thick Film 1210 1.8Ω 5% 0.5W1/2W -100ppm/℃ to 600ppm/℃ Molded SMD SMD Embossed Carrier T/R
替代型号ERJ-14YJ1R8U
型号/品牌 代替类型 替代型号对比

ERJ-14YJ1R8U

Panasonic 松下

当前型号

当前型号

ERJ-T14J1R8U

松下

完全替代

ERJ-14YJ1R8U和ERJ-T14J1R8U的区别

ERJ-14BQF1R8U

松下

类似代替

ERJ-14YJ1R8U和ERJ-14BQF1R8U的区别
