Res Thin Film 0603 267Ω 0.1% 0.1W1/10W ±25ppm/℃ Molded SMD Automotive T/R
267 Ohms ±0.1% 0.1W, 1/10W Chip Resistor 0603 1608 Metric Automotive AEC-Q200 Thin Film
得捷:
RES SMD 267 OHM 0.1% 1/10W 0603
贸泽:
Thin Film Resistors - SMD 0603 267ohm 0.1% 25ppm
艾睿:

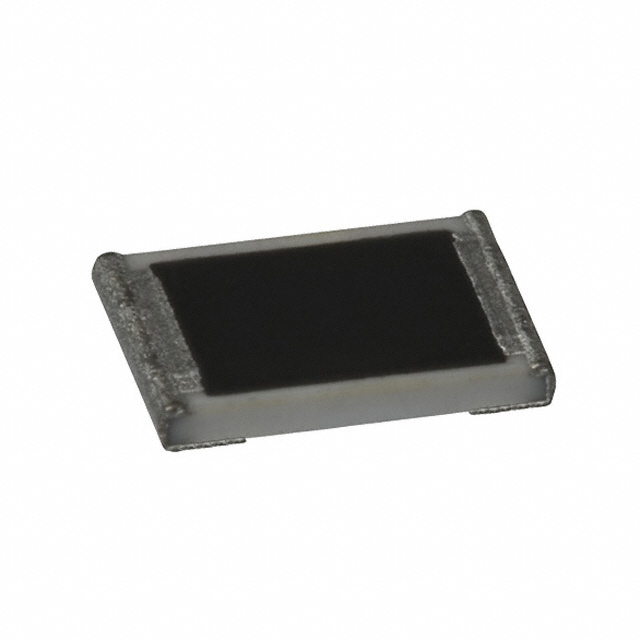

Use this ERA-3AEB2670V fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This product has a resistance value of 267 Ohm. This part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±25 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes thin film technology. This part has an operating temperature of -55 to 155 °C. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep.
立创商城:
267Ω ±0.1% 100mW
Electro Sonic:
Res Thin Film 0603 267 Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
额定电压DC 75.0 V
容差 ±0.1 %
额定功率 0.1 W
电阻 267 Ω
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 75 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
