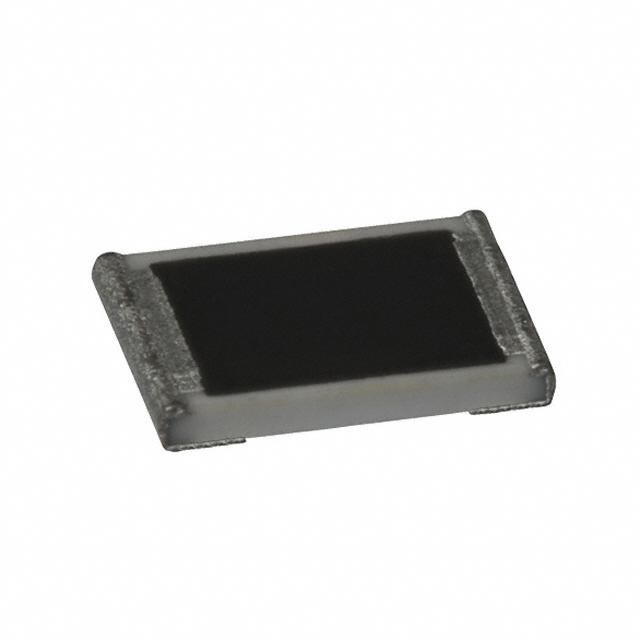

ERJ-3BQFR82V

Res Thick Film 0603 0.82Ω 1% 0.25W1/4W ±300ppm/℃ SMD Automotive T/R

±1% 0.25W，1/4W 芯片 0603（1608 公制） 汽车级 AEC-Q200，电流检测 厚膜

立创商城:
820mΩ ±1%

得捷:
RES 0.82 OHM 1% 1/4W 0603

艾睿:
Use this ERJ-3BQFR82V fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 820m Ohm. It is also complete with current sensing technology. Its temperature coefficient is ±300 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep.

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ-3BQFR82V  SMD Current Sense Resistors, AEC-Q200 ERJ Series, 0.82 ohm, 200 mW, 1%, 0603 [1608 Metric]

Electro Sonic:
Res Thick Film 0603 0.82 Ohm 1% 0.25W1/4W 0ppm/°C to 300ppm/°C Pad SMD Automotive T/R
