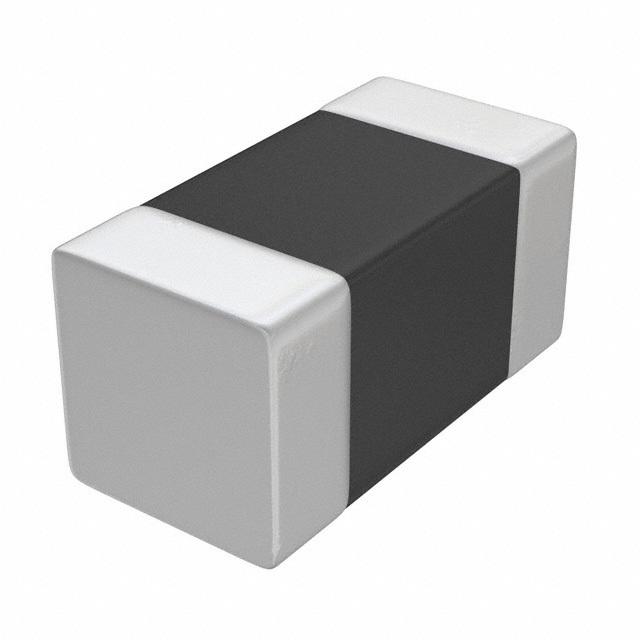

ERJ8RQF6R8V

PANASONIC ELECTRONIC COMPONENTS  ERJ8RQF6R8V  电流感应电阻器, 表面安装, AEC-Q200 ERJ系列, 6.8 ohm, 250 mW, ± 1%, 1206 [3216公制]

1206 格式低电阻器 - 0.25W

ERJ 8R 芯片电阻器轻便紧凑。 这些芯片电阻器可提供高可靠性，由三层电极和金属上釉厚膜电阻元件制成。

符合 AEC-Q200

电流感应

小尺寸

低电阻值

适用于流动焊接和回流焊接

### 应用

这些电流感应电阻器符合 AEC-Q200 标准，可在汽车应用中使用。

### 标准

IEC 60115-8, JIS C 5201-8, JEITA RC-2144

欧时:
### 1206 格式低电阻电阻器 - 0.25WPanasonic ERJ 8R 芯片电阻器轻便紧凑。 这些芯片电阻器可提供高可靠性，由三层电极和金属上釉厚膜电阻元件制成。符合 AEC-Q200 电流感应 小尺寸 低电阻值 适用于流动焊接和回流焊接 ### 应用这些电流感应电阻器符合 AEC-Q200 标准，可在汽车应用中使用。 ### 标准IEC 60115-8, JIS C 5201-8, JEITA RC-2144### 厚膜 - 1206

e络盟:
电流感应电阻器, 表面安装, 6.8 ohm, ERJ8R 系列, 1206 [3216公制], 250 mW, ± 1%, 厚膜

艾睿:
This is a ERJ-8RQF6R8V fixed single surface-mount resistor from Panasonic. This product has a resistance value of 6.8 Ohm. This dependable part has a power rating of 0.25 1/4 W. It is also complete with current sensing technology. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep.

安富利:
Res Thick Film 1206 6.8 Ohm 1% 1/4W ±200ppm/°C Molded SMD SMD Punched Carrier T/R

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ8RQF6R8V  SMD Current Sense Resistors, AEC-Q200 ERJ Series, 6.8 ohm, 250 mW, - 1%
