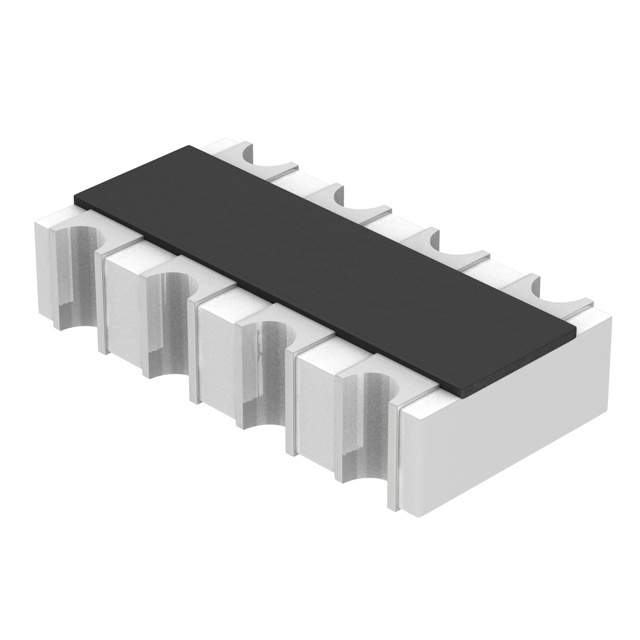

EXBV8V223JV

PANASONIC ELECTRONIC COMPONENTS  EXBV8V223JV  电阻阵列, 凹式端子, 0603X4, 22K 5%

The EXBV8 series are isolated thick film chip resistor networks with concave termination. The Resistance range includes E24 decade values from 10 ohm to 1Mohm. These integrated discrete resistors can effectively reduce PCB space with high component reliability and more efficient for pick and place application.

.

EIA 0603 resistor array

.

4 resistors in 3.2mm × 1.6mm size with 8 terminals

.

Power rating of 0.063W/element at 70°C

.

±5% tolerance

.

Improvement of placement efficiency

.

Meets IEC 60115-9, JIS C 5201-9 and EIAJ RC-2129 standards

.

Jumpers are also available

.

Operating temperature range -55°C to 125°C
