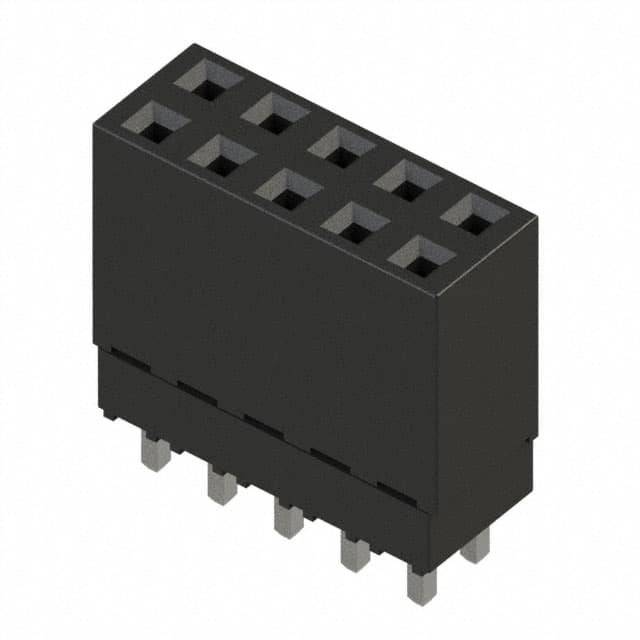

ESQ-105-12-T-D

板至板连接, 2.54 mm, 10 触点, 插座, ESQ Series, 通孔安装, 2 排

The ESQ series from are PC/104 through hole elevated socket strips. It mates with Samtec TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH and HTSS series of connectors. These are self nesting socket strips which has standard and low insertion force contacts with 0.025" 0.635mm square tail.

.

Orderable with single/dual/triple rows -S/-D/-T option

.

Pitch spacing is 2.54mm 1 to 36 contacts per row with vertical orientation

.

High operating temperature range of -55°C to 105°C for matte tin plated contacts

.

Contact material is phosphor bronze

.

Black glass filled polyester insulator material

.

Tiger Buy contact system

.

Complies with UL E111594 and CSA 090871_0_000 standards
