Panasonic 0603 ELJRE Series High Frequency Chip InductorsPanasonic ELJRE series high frequency use chip inductors using non magnetic core and capable of being Re-flow or flow soldered. ### ApplicationsRF circuit for cellular phones and Wireless communications equipment ### SMT 0603 电感器（扼流圈）
0603 ELJRE Series High Frequency Chip Inductors
Panasonic ELJRE series high frequency use chip inductors using non magnetic core and capable of being Re-flow or flow soldered.
### Applications
RF circuit for cellular phones and Wireless communications equipment
欧时:
### Panasonic 0603 ELJRE Series High Frequency Chip InductorsPanasonic ELJRE series high frequency use chip inductors using non magnetic core and capable of being Re-flow or flow soldered. ### ApplicationsRF circuit for cellular phones and Wireless communications equipment ### SMT 0603 电感器（扼流圈）
安富利:

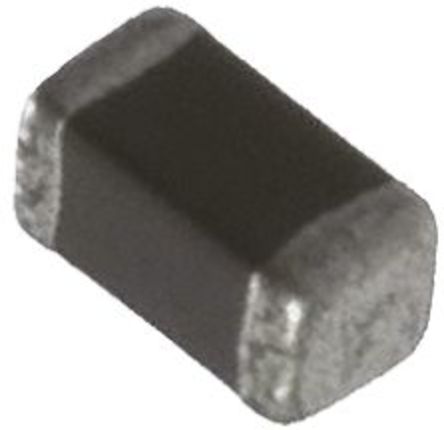

Ind High Frequency Chip Laser Cut 56nH 2% 100MHz 12Q-Factor Ceramic 250mA 0603 T/R
额定电流 250 mA
容差 ±2 %
电感 56 nH
自谐频率 1.80 GHz
Q值 12
产品系列 ELJRE
屏蔽 No
电感公差 ±2 %
测试频率 100 MHz
电阻DC） 1.2 Ω
工作温度Max 85 ℃
工作温度Min -20 ℃
电阻DC Max 1.2 Ω
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 800 µm
高度 0.8 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
