S 系列印刷电路板弯管座 90°，用于安装到印刷电路板。 印刷电路板安装和钻孔计划随附每种产品。 参照 | 库存 | 美国 | 标称电流 ---|---|---|--- Lemo | cts | rms V | A **0S 系列** | | | EPL.0S.302.HLN | 2 | 400 | 4.5 EPL.0S.304.HLN | 4 | 400 | 4.5 **1S 系列** | | | EPL.1S.302.HLN | 2 | 400 | 4.5 EPL.1S.304.HLN | 4 | 400 | 4.5 EPL.1S.306.HLN | 6 | 230 | 4.5 ### S Series - Metal### S series cylindrical connectorsSeries of metal multi-pin connectors with very compact dimensions. Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable. Available in 3 different sizes 0S, 1S and 2S, with different contact layouts. The correct keyway is ensured by the insulating unit both male and female. 材料 | \- 外部主体： 镀铬黄铜 \- 绝缘： PEEK \- 触点：公镀金黄铜 1.5 μm（sub-layer 铜 + 镍） 母镀金青铜 2 μm（sub-layer 铜 + 镍） ---|--- 触点电阻： | 机械寿命 | >1000 次循环 工作温度： | –55 °C → +165 °C

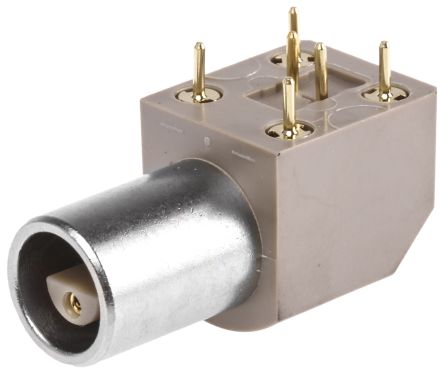

弯管座，用于 S 系列印刷电路板
弯管座 90°，用于安装到印刷电路板。
印刷电路板安装和钻孔计划随附每种产品。
### S series cylindrical connectors
Series of metal multi-pin connectors with very compact dimensions.
Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable.
Available in 3 different sizes 0S, 1S and 2S, with different contact layouts.
The correct keyway is ensured by the insulating unit both male and female.
