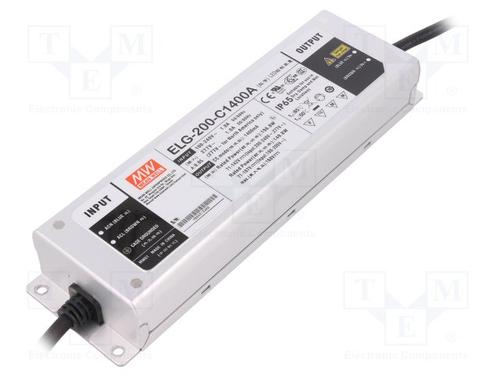

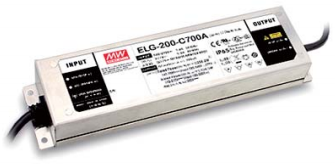

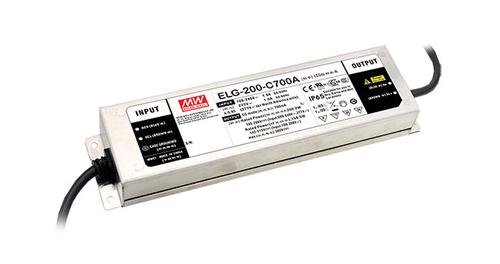

LED Driver CC 200W 700-1400mA Linear 71-142VDC 100-305VAC PFC Non-Dimming Internal Pot Adj Io IP65 Metal Encl...
1.4A 71 ~ 142V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
LED POWER SUPPLIES 198.8W71-142V
贸泽:
LED Power Supplies 198.8W71-142V 1400mA CC IP65 Io adj w/pot
艾睿:
AC/DC LED Power Supply 198.8W Single 4-Pin
安富利:
LED DRVR Module 1-CH IP65 142V 1.4A
TME:
Pwr sup.unit: switched-mode; LED; 198.8W; 71÷142VDC; 700÷1400mA
MASTER:
AC/DC LED Power Sply - Const Curr - 198.8W - Adj: 160 Vdc OC @ 1,400mA - Dim: No
Electro Sonic:
AC/DC LED Power Sply - Const Curr - 198.8W - Adj: 160 Vdc OC @ 1,400mA - Dim: No
CDI:
LED Driver CC 200W 700-1400mA Linear 71-142Vdc 100-305Vac PFC Non-Dimming Internal Pot Adj Io IP65 Metal Enclosure
额定功率 198.8 W
输出接口数 1
输出电压 71.142 VDC
输出电流 700.1400 mA
通道数 1
输出功率 198.8 W
输入电压DC Max 431 V
输入电压DC Min 142 v
输入电压AC Max 305 v
输入电压AC Min 100 v
输出电压Max 142 V
输出电压Min 71 V
输出电流Max 1400 mA
输出电流Min 0.7 A
输出功率Max 198 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 100.305VAC, 142.431VDC
输入电压 100VAC ~ 305VAC, 142VDC ~ 431VDC
引脚数 4
封装 Metal Enclosure
封装 Metal Enclosure
重量 1.05 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
ECCN代码 EAR99
