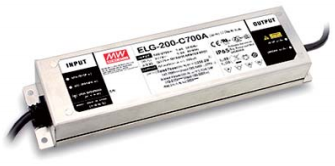

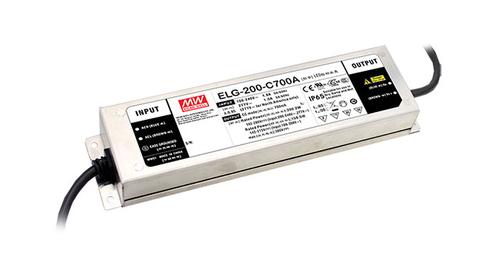

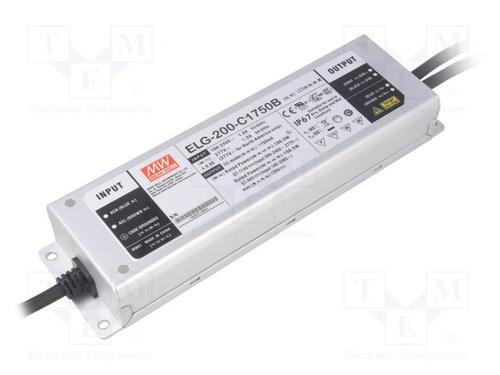

LED Driver CC 200W 1750mA Linear 57-114VDC 100-305VAC PFC 0-10V, PWM, Resistance Dimming IP67 Metal Enclosure
1.75A 57 ~ 114V Constant Current LED Driver AC DC Converter Topology 1 Output
得捷:
LED POWER SUPPLIES 199.5W57-114V
贸泽:
LED Power Supplies 199.5W57-114V 1750mA CC IP67 3in1 Dimming
艾睿:
AC/DC LED Power Supply 199.5W Single 6-Pin
TME:
Pwr sup.unit: switched-mode; LED; 199.5W; 57÷114VDC; 1750mA; IP67
MASTER:
AC/DC LED Pwr Sply - Const Curr - 199.5W - Fixd: 120 Vdc OC @ 1,750mA - Dim: 0-10Vdc/PWM/Resist
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr - 199.5W - Fixd: 120 Vdc OC @ 1,750mA - Dim: 0-10Vdc/PWM/Resist
CDI:
LED Driver CC 200W 1750mA Linear 57-114Vdc 100-305Vac PFC 0-10V, PWM, Resistance Dimming IP67 Metal Enclosure
额定功率 199.5 W
输出接口数 1
输出电压 57.114 VDC
输出电流 1750 mA
输出功率 150.5 W
输出电流Max 1750 mA
输出功率Max 199 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 142.431VDC, 100.305VAC
输入电压 100VAC ~ 305VAC, 142VDC ~ 431VDC
引脚数 6
封装 Metal Enclosure
长度 244 mm
宽度 71 mm
高度 37.5 mm
封装 Metal Enclosure
重量 1.05 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
