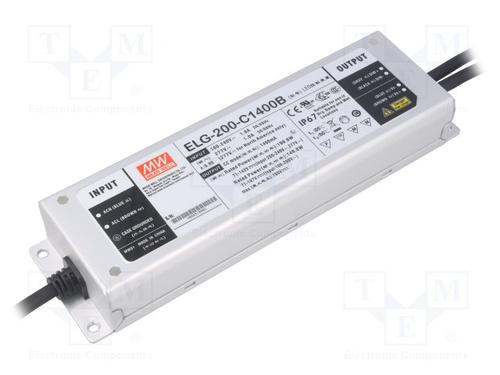

LED Driver CC 200W 1400mA Linear 71-142VDC 100-305VAC PFC 0-10V, PWM, Resistance Dimming IP67 Metal Enclosure
1.4A 71 ~ 142V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
LED POWER SUPPLIES 198.8W71-142V
贸泽:
LED Power Supplies 198.8W71-142V 1400mA CC IP67 3in1 Dimming
艾睿:
AC/DC LED Power Supply 198.8W Single 6-Pin
安富利:
LED DRVR Module 1-CH PWM IP67 142V 1.4A
TME:
Pwr sup.unit: switched-mode; LED; 198.8W; 71÷142VDC; 1400mA; IP67
MASTER:
AC/DC LED Pwr Sply - Const Curr - 198.8W - Fixd: 160 Vdc OC @ 1,400mA - Dim: 0-10Vdc/PWM/Resist
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr - 198.8W - Fixd: 160 Vdc OC @ 1,400mA - Dim: 0-10Vdc/PWM/Resist
CDI:
LED Driver CC 200W 1400mA Linear 71-142Vdc 100-305Vac PFC 0-10V, PWM, Resistance Dimming IP67 Metal Enclosure
额定功率 198.8 W
输出接口数 1
输出电压 71.142 VDC
输出电流 1400 mA
通道数 1
输出功率 198.8 W
输入电压DC Max 431 V
输入电压DC Min 142 v
输入电压AC Max 305 v
输入电压AC Min 100 v
输出电压Max 142 V
输出电压Min 71 V
输出电流Max 1400 mA
输出功率Max 198 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 142.431VDC, 100.305VAC
输入电压 100VAC ~ 305VAC, 142VDC ~ 431VDC
引脚数 6
封装 Metal Enclosure
封装 Metal Enclosure
重量 1.05 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
ECCN代码 EAR99
