FTE-140-01-G-DH-K-TR

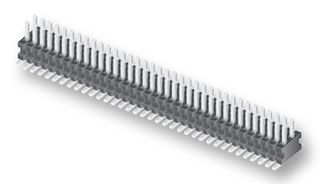

SAMTEC FTE-140-01-G-DH-K-TR Board-To-Board Connector, 0.8mm, 80Contacts, Header, FTE Series, Surface Mount, 2Rows

The FTE series from are surface mount micro terminal strip headers. These terminal strip headers mates with Samtec CLE series of connector. Terminal strips available in large variety of terminal lengths with options including end shroud, end shroud with locking clips and end shroud with guide posts.

.

Dual row horizontal mounting terminal strip header

.

Pitch spacing is 0.8mm 5 to 90 contacts per row

.

Black liquid crystal polymer insulator material

.

Contact material is phosphor bronze

.

High operating temperature range of -55°C to 125°C

.

10µ" gold plated contacts

.

Current rating is 2.7A
