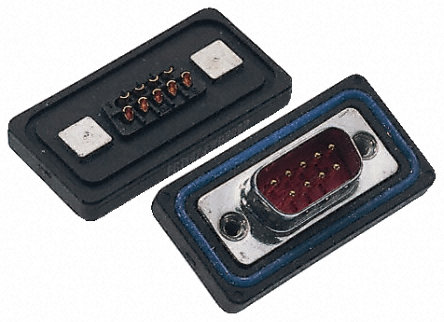

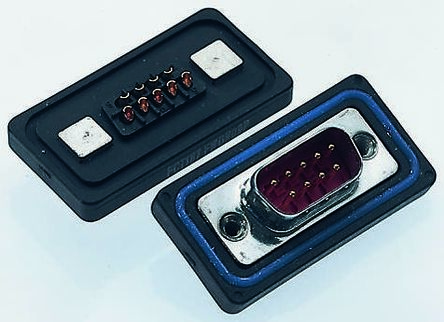

Back panel D-connector, solder tag
These waterproof back panel D-connectors and jacks meet protection rating IP67 and use an O-ring seal to minimise the extent to which the plug connection protrudes from the panel.
Pins | A
mm | B
mm | RS Stock No. |
---|---|---|---|---
| | | Connector | Socket
9 | 40 | 25.00 | 195-7244 | 195-7389
15 | 48.30 | 33.30 | 195-7272 | -
25 | 62 | 47.05 | 195-7294 | 195-7424
Housing material: | Nickel and tin-plated brass
---|---
Insulation material: | Glass-reinforced thermoplastic, UL94V-0
Insulation resistance: | 5000 mΩ
Contact material: | Copper bronze, gold and nickel-plated
Contact resistance: | < 10 mΩ
Nom. current: | 5 A max.
Operating voltage: | 250 V max.
Test voltage: | 1000 V 1 min.
Temperature range: | -25°C → +130°C
