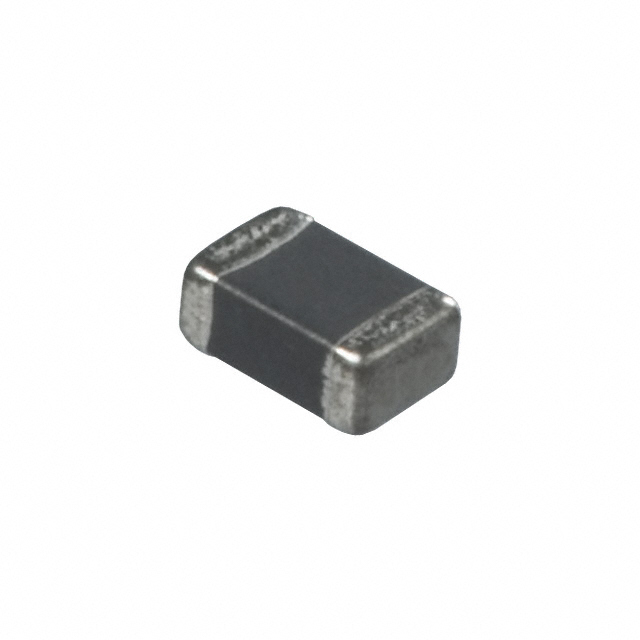

0805 2.2nF ±10% 100V X7R
±10% 100V 陶瓷器 X7R 0805(2012 公制)
得捷:
CAP CER 2200PF 100V X7R 0805
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 2200pF 100Volts 10%
艾睿:
Since this GCM216R72A222KA37D multilayer ceramic capacitor from Murata has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its capacitance value is 0.0022uF. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.0022uF 100V X7R 10% SMD 0805 125°C Paper T/R
Chip1Stop:
Cap Ceramic 0.0022uF 100V X7R 10% SMD 0805 125℃ Automotive T/R
Verical:
Cap Ceramic 0.0022uF 100V X7R 10% Pad SMD 0805 125C Automotive T/R
额定电压DC 100 V
电容 0.0022 µF
容差 ±10 %
电介质特性 X7R
产品系列 GCM
工作温度Max 125 ℃
工作温度Min 55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 4000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GCM216R72A222KA37D muRata 村田 | 当前型号 | 当前型号 |
GCM216R72A222KA37J 村田 | 类似代替 | GCM216R72A222KA37D和GCM216R72A222KA37J的区别 |
CDR31BX222BKUS 艾维克斯 | 类似代替 | GCM216R72A222KA37D和CDR31BX222BKUS的区别 |
B37941K5222K060 爱普科斯 | 功能相似 | GCM216R72A222KA37D和B37941K5222K060的区别 |
