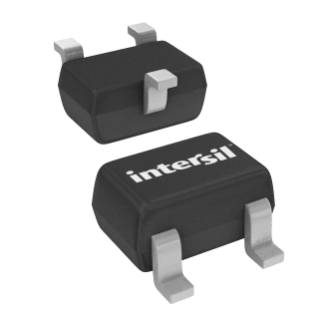

INTERSIL ISL21080CIH315Z-TK 电压基准, NanoPower, 系列 - 固定, ISL21080系列, 1.5V, SOT-23-3
The is an Analogue Voltage Reference features low supply voltage operation at ultra-low 310nA typical, 1.5µA maximum operating current. Additionally, the ISL21080 family features guaranteed initial accuracy as low as ±0.2% and 50ppm/°C temperature coefficient. This reference is an ideal for general purpose portable applications to extend battery life at lower cost. The ISL21080 is provided in the industry standard 3 lead SOT-23 pinout. The ISL21080 output voltages can be used as precision voltage sources for voltage monitors, control loops, standby voltages for low power states for DSP, FPGA, DataPath Controllers, microcontrollers and other core voltage such as 0.9, 1.024, 1.25, 1.5, 2.048, 2.5, 3.0, 3.3, 4.096 and 5.0V.
ESD sensitive device, take proper precaution while handling the device.
容差 ±0.5 %
输入电压DC 2.70V ~ 5.50V
输出电压 1.5 V
输出电流 7 mA
供电电流 1.5 µA
通道数 1
针脚数 3
静态电流 1.5 µA
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Max 1.5 V
输出电压Min 1.5 V
输出电流Max 7 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 0.94 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sensing & Instrumentation, Wireless, Medical, 电源管理, 无线, Industrial, 工业, Communications & Networking, 便携式器材, Power Management, 医用, Consumer Electronics, 通信与网络, 消费电子产品, 传感与仪器, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ISL21080CIH315Z-TK Intersil 英特矽尔 | 当前型号 | 当前型号 |
ISL21080CIH315Z-T7A 英特矽尔 | 完全替代 | ISL21080CIH315Z-TK和ISL21080CIH315Z-T7A的区别 |
REF3040AIDBZR 德州仪器 | 功能相似 | ISL21080CIH315Z-TK和REF3040AIDBZR的区别 |
REF3030AIDBZR 德州仪器 | 功能相似 | ISL21080CIH315Z-TK和REF3030AIDBZR的区别 |
