1A / 1C 10A的立方型功率继电器浪涌电压6kV的类型也可 1a/1c 10A cubic type power relays Surge voltage 6 kV type also available

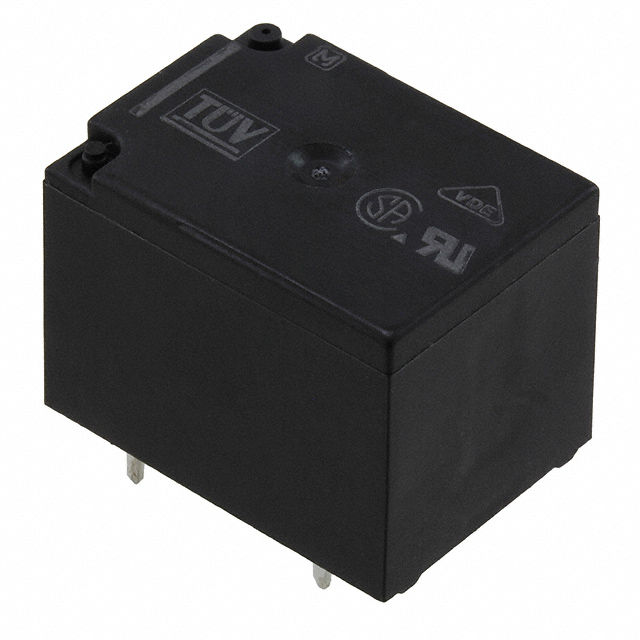

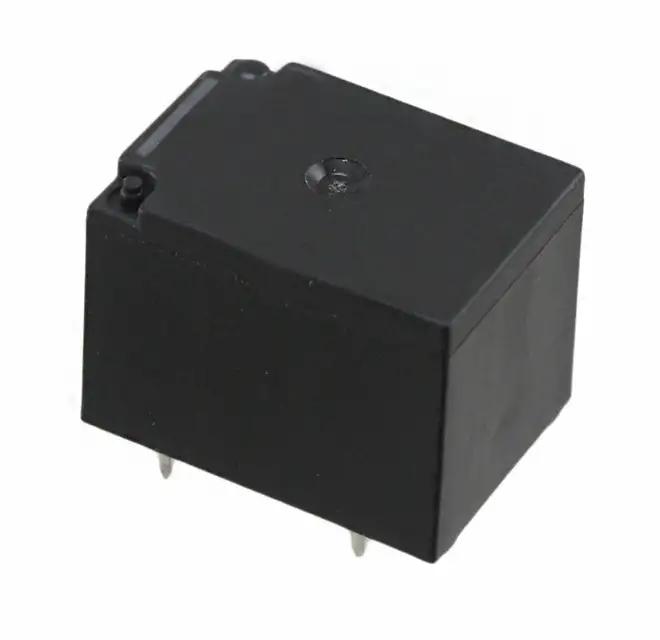

1a/1c 10A cubic type power relays
FEATURES
• Miniature size with universal terminal footprint
• High contact capacity: 10 A
• TV-5 type available Standard type
1 Form A type →TV-5
1 Form C type →TV-5 N.O. side only
• VDE, TÜV also approved
• Sealed construction for automatic cleaning Standard type
• Class B and F coil insulation type also available.
• EN60335-1 GWT compliant Tested by VDE type available
• Surge voltage 6 kV type also available
TYPICAL APPLICATIONS
1\. Home appliances Air conditioner, heater, etc.
2\. Office machines PPC, facsimile, etc.
3\. Vending machines
额定电压DC 100 V
额定电压AC 250 V
功耗 360 mW
触点额定电流 10 A
线圈电压 12 VDC
线圈电流 30 mA
线圈电阻 400 Ω
线圈电压DC 12 V
线圈功率 360 mW
额定功率Max 2.5 KVA
工作温度Max 70 ℃
工作温度Min -40 ℃

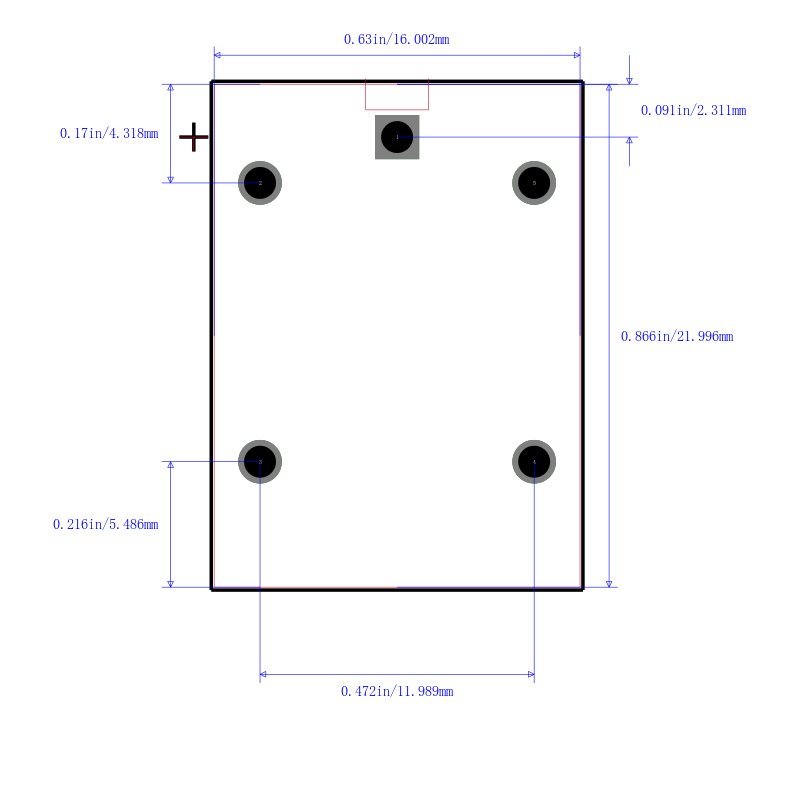

安装方式 Through Hole
引脚数 5
封装 -
长度 22 mm
宽度 16 mm
高度 16.4 mm
封装 -
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
