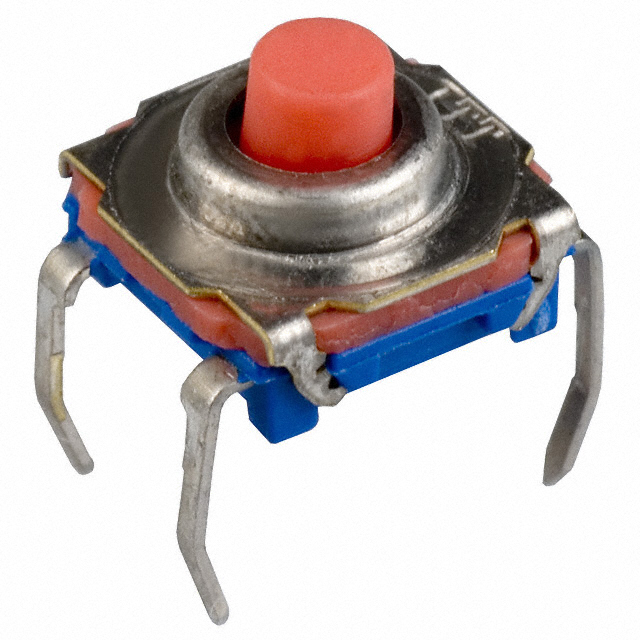

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycle 3N Thru-Hole Box
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
贸泽:
Tactile Switches Switch Tact Spst 300Gf Vert Seal
艾睿:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
Verical:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
MASTER:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
Online Components:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
Electro Sonic:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
触点电镀 Silver
额定电压DC 32 V
接触器类型 Button
额定电流 50 mA
额定功率 1 VA
方向 Vertical
触点类型 SPST-NO
额定电流Max 0.05 A
额定功率Max 1 VA
工作温度Max 90 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
接触电阻Max <50 mΩ
安装方式 Through Hole
长度 7.40 mm
宽度 7.40 mm
高度 5.4 mm
触点材质 Silver
工作温度 -40℃ ~ 90℃
产品生命周期 Obsolete
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
