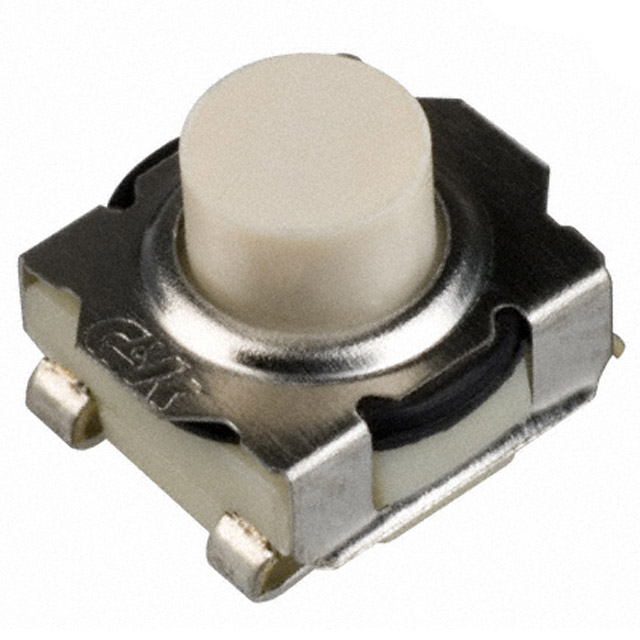

C & K COMPONENTS KT11P2JM34LFS 轻触开关
This tactile switch from C&K Components is perfect for turning on your circuit by applying pressure. It has a SPST configuration. This tactile switch has an operating temperature range of -40 °C to 90 °C. The KT11P2JM34LFS tactile switch has a j-bend termination style. This round button actuator is 2.36 mm long. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC.
额定电压DC 32 V
额定电压AC 32 V
绝缘电阻 10 GΩ
排数 2
额定功率Max 1 W
工作温度Max 90 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
接触电阻Max <50 mΩ
安装方式 Surface Mount
封装 编带
长度 6.6 mm
高度 6.6 mm
封装 编带
触点材质 Silver
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KT11P2JM34LFS C&K Components | 当前型号 | 当前型号 |
KSJ0V431 80SH LFTR C&K Components | 功能相似 | KT11P2JM34LFS和KSJ0V431 80SH LFTR的区别 |
