轻触开关6.2mm*6.2mm,1.7N
顶部触动 触摸 SPST-NO 表面贴装型
得捷:
SWITCH TACTILE SPST-NO 0.01A 32V
立创商城:
轻触开关6.2mm*6.2mm,1.7N
贸泽:
Tactile Switches Tact
艾睿:

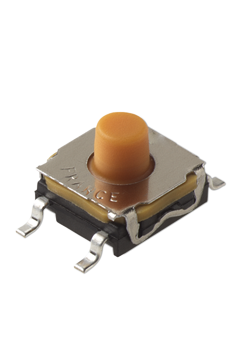

Apply pressure and turn your circuit on with this KSC423G70SHLFG tactile switch from C&a;K Components. This device has a maximum current rating of 0.01. It has a SPST configuration. This tactile switch has an operating temperature range of -40 °C to 125 °C. The KSC423G70SHLFG tactile switch has a gull wing termination style. This round button actuator is 2.6 mm long. The maximum DC voltage rating is 32 VDC. This product is 6.2 mm long, 5.2 mm tall and 10 mm deep.
Chip1Stop:
Switch Tactile N.O. SPST Round Button Gull Wing 0.01A 32VDC 0.2VA 1.7N SMD Automotive T/R
Verical:
Switch Tactile N.O. SPST Round Button Gull Wing 0.01A 32VDC 0.2VA 1.7N SMD Automotive T/R
MASTER:
Sealed Tact Switch for SMT
Online Components:
Sealed Tact Switch for SMT
Electro Sonic:
Sealed Tact Switch for SMT
额定电压DC 32 V
额定电流 10 mA
排数 2
额定功率 0.2 VA
额定电流Max 0.01 A
额定功率Max 0.2 VA
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
接触电阻Max <100 mΩ
安装方式 Surface Mount
封装 6.2mm*6.2mm
长度 6.2 mm
宽度 6.2 mm
高度 5.2 mm
封装 6.2mm*6.2mm
触点材质 Gold
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KSC423G70SHLFG C&K Components | 当前型号 | 当前型号 |
KSC243JLFG C&K Components | 功能相似 | KSC423G70SHLFG和KSC243JLFG的区别 |
