压力传感器, 绝对, 40.5 mV/kPa, 10 kPa, 115 kPa, 4.5 V, 5.5 V

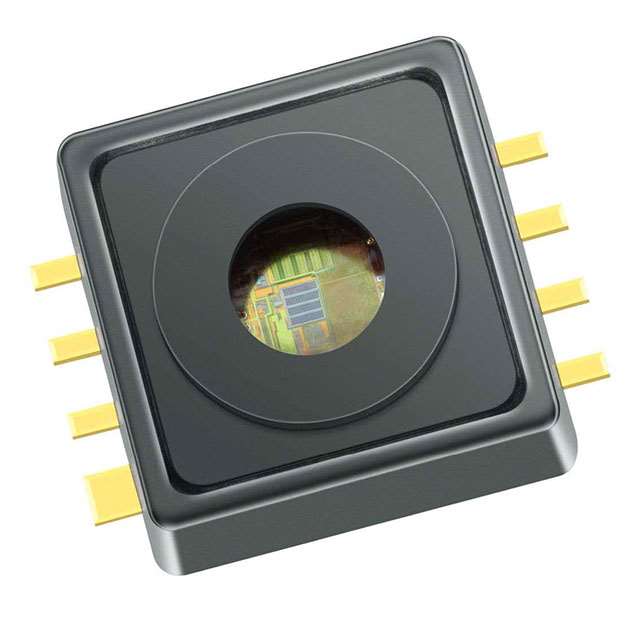

Ensure the components within your system are safe with this board mount pressure sensor from Technologies which measures and responds to gas or liquid pressure changes. It has a voltage of 0.1 to 4.85 V. This device"s minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. This part has a temperature range of -40 °C to 140 °C. Its operating pressure range is 10kPa to 115kPa, while its maximum overload pressure is 600kPa. This part has a maximum ESD protection device voltage of 2 @ HBM kV. It has a response time of 0.65 ms.
输出电压 0.1V ~ 4.85V
针脚数 8
工作温度Max 140 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 PG-DSOF-8
封装 PG-DSOF-8
工作温度 -40℃ ~ 140℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automotive applications manifold air pressure measurement, 板式安装, Industrial control, Weather stations, Medical applications, Altimeters, Consumer applications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
