KT 系列 密封 单刀单掷 3 N 侧面触动 直角 表面贴装 轻触开关

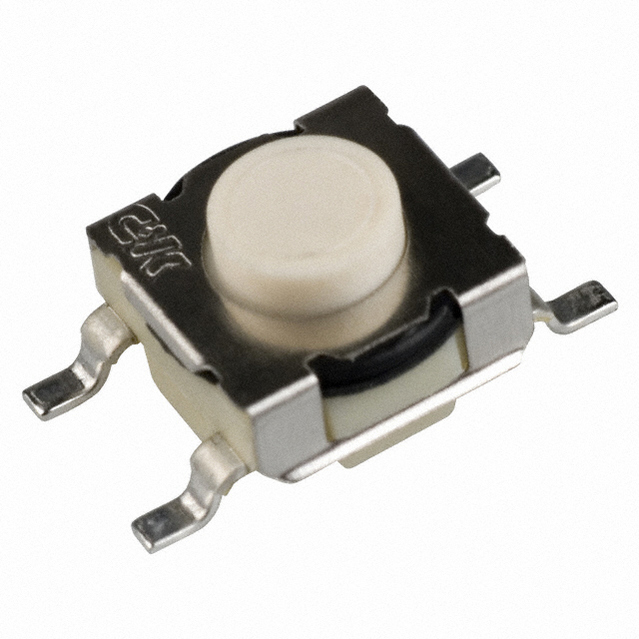

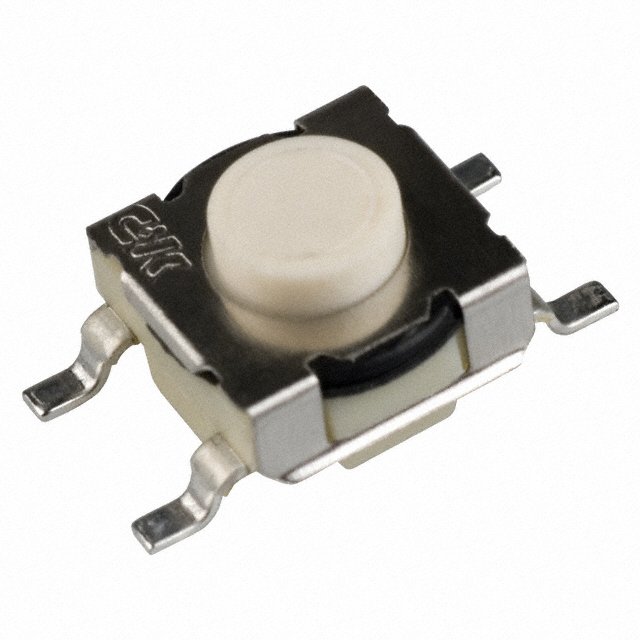

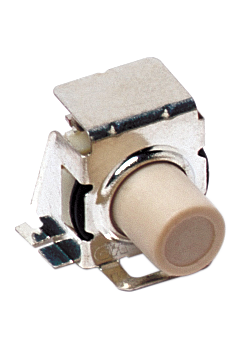

This tactile switch from C&K Components will turn your system on and off when there is a change in pressure. It has a SPST configuration. This tactile switch has an operating temperature range of -40 °C to 90 °C. The KT11P3SM34LFS tactile switch has a gull wing termination style. This round button actuator is 1.12 mm long. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC.
额定电压DC 32 V
额定电压AC 32 V
额定电流 1 A
绝缘电阻 1000 MΩ
排数 2
触点类型 SPST-NO
工作温度Max 90 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
接触电阻Max <50 mΩ
安装方式 Surface Mount
封装 SMD
长度 7.57 mm
宽度 4.38 mm
高度 6.6 mm
封装 SMD
触点材质 Silver
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
