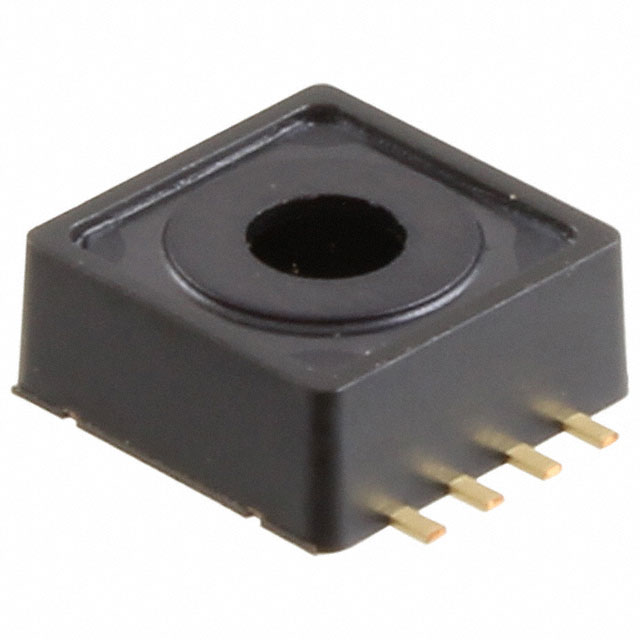

INFINEON KP235XTMA1 压力传感器, 模拟气压, 绝对, 53.3 mV/kPa, 40 kPa, 115 kPa, 4.5 V, 5.5 V
The KP235 is a miniaturized Analogue Barometric Air Pressure Sensor based on a capacitive principle. It is surface micro machined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into an analogue output signal. The calibrated transfer function converts a pressure of 40 to 115kPa into a voltage range of 0.5 to 4.5V. The sensor has been primarily developed for measuring barometric air pressure.
- .
- High precision pressure sensing ±1.2kPa
- .
- Ratiometric analogue output
- .
- Broken wire detection
- .
- High sensitivity
电源电压DC 4.50V min
输出电压 0.1V ~ 4.85V
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
封装 SMD-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 医用, Medical applications, Sensing & Instrumentation, Automotive applications barometric air pressure measurement, Consumer applications, 传感与仪器, 消费电子产品, Consumer Electronics, Test & Measurement, 板式安装, Weather stations, 工业, 测试与测量, 车用, Industrial, Industrial control, Altimeters, Automotive, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
