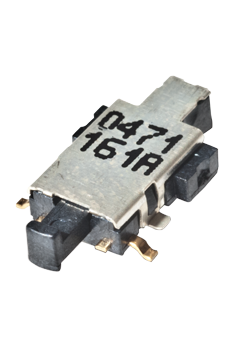

KSM 系列 单刀单掷-常闭 0.05 A 24 V 轻触开关
侧面触动 触摸 SPST-NC 表面贴装,直角
得捷:
SWITCH TACTILE SPST-NC 0.05A 24V
贸泽:
Tactile Switches Switch Tact Side Act Smt
艾睿:
By detecting changes in your environment, this side actuated KSM6161LFG detector switch from C&a;K Components can be used in a wide array of applications. It has a SPST configuration. This device has a maximum current rating of 0.05. This lever actuator is 2.2 mm long. This switch detector has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The KSM6161LFG switch detector has a gull wing termination style. The maximum DC voltage rating is 32 VDC. This product is 12 mm long, 2.35 mm tall and 6.7 mm deep.
富昌:
KSM 系列 单刀单掷-常闭 0.05 A 24 V 轻触开关
Chip1Stop:
Switch Detector N.C. SPST Lever Gull Wing 0.05A 32VDC 1VA SMD Automotive T/R
Verical:
Switch Detector N.C. SPST Lever Gull Wing 0.05A 32VDC 1VA SMD Automotive T/R
MASTER:
Side Actuated Detect Switch
Online Components:
Side Actuated Detect Switch
Electro Sonic:
Side Actuated Detect Switch
触点电镀 Gold
额定电压DC 32 V
接触器类型 Standard
额定电流 50 mA
额定功率 1 VA
方向 Right Angle
触点类型 SPST-NC
触点额定电流 50.0 mA
额定电流Max 0.05 A
额定功率Max 1 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
安装方式 Surface Mount
封装 SMD
长度 9.8 mm
宽度 5.80 mm
高度 2.35 mm
封装 SMD
触点材质 Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KSM6161LFG C&K Components | 当前型号 | 当前型号 |
KSM1131ZLFG C&K Components | 完全替代 | KSM6161LFG和KSM1131ZLFG的区别 |
