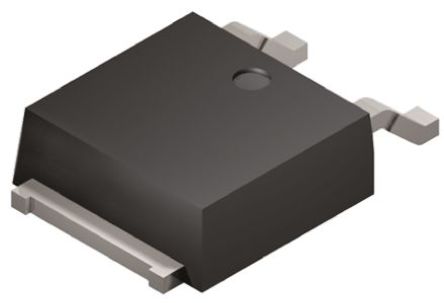

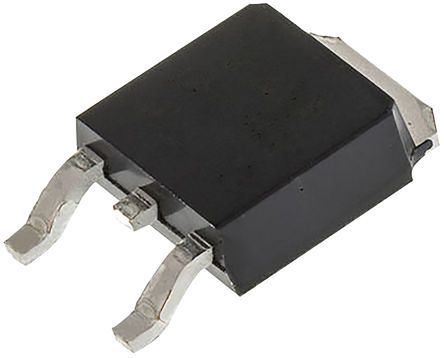

ON SEMICONDUCTOR LP2950CDT-3.3RKG 固定电压稳压器, LDO, 4.3V至30V, 380mV压差, 3.3V输出, 100mA输出, TO-252-3
低压降 LDO 线性电压调节器,高达 120mA,
### LDO(低压降)线性稳压器,ON Semiconductor
低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
立创商城:
正 Vin=30V Vout=3.3V 100mA LDO 稳压器,100 mA,低功耗
得捷:
IC REG LINEAR 3.3V 100MA DPAK
欧时:
### LDO(低压降)线性稳压器,ON Semiconductor,最高可达 120mA### LDO(低压降)线性稳压器,ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 4.3V至30V, 380mV压差, 3.3V输出, 100mA输出, TO-252-3
艾睿:
This LDO LP2950CDT-3.3RKG linear regulator developed by ON Semiconductor keeps the power stable! Its typical dropout voltage at current is 0.03@100uA|0.35@100mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. Use this part at voltages lower than 30 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.2% and line regulation of 0.2%. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.08@100uA|0.45@100mA V. Its polarity is positive.
Allied Electronics:
IC; Power; Regulator; LDO; 3.3V; 100mA; DPAK-3; Cut Tape
安富利:
LDO Regulator Pos 3.3V 0.1A 3-Pin2+Tab DPAK T/R
富昌:
LP2950 系列 30 V 100 mA 低功耗 低压差稳压器 - DPAK
Chip1Stop:
LDO Regulator Pos 3.3V 0.1A 3-Pin2+Tab DPAK T/R
Verical:
LDO Regulator Pos 3.3V 0.1A 3-Pin2+Tab DPAK T/R
Newark:
# ON SEMICONDUCTOR LP2950CDT-3.3RKG Fixed LDO Voltage Regulator, 4.3V to 30V In, 380mV Dropout, 3.3V/100mA Out, TO-252-3
力源芯城:
100mA低压差稳压器
DeviceMart:
IC REG LDO 3.3V .1A DPAK
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 100mA DPAK-3
无卤素状态 Halogen Free
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
供电电流 120µA ~ 12mA
针脚数 3
极性 P-Channel
静态电流 75 µA
跌落电压 380 mV
输入电压Max 30 V
输入电压Min 4.3 V
输出电压Min 3.3 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 30 V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.38 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2950CDT-3.3RKG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LP2950ACDT-3.3RG 安森美 | 类似代替 | LP2950CDT-3.3RKG和LP2950ACDT-3.3RG的区别 |
LP2950CDT-3.3G 安森美 | 类似代替 | LP2950CDT-3.3RKG和LP2950CDT-3.3G的区别 |
LP2950ACDT-3.3 安森美 | 类似代替 | LP2950CDT-3.3RKG和LP2950ACDT-3.3的区别 |
