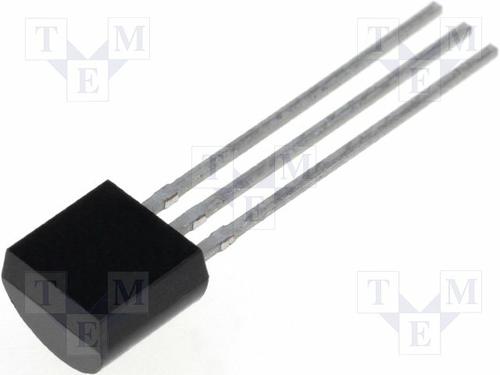

LP2950 系列 3 V 100 mA 低功耗 低压差 稳压器 - TO-92-3
PMIC - 稳压器 - 线性 正 固定 1 输出 100mA TO-92-3
得捷:
IC REG LINEAR 3V 100MA TO92-3
立创商城:
LP2950CZ-3.0G
艾睿:
This LDO LP2950CZ-3.0G linear regulator from ON Semiconductor acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.03@100uA|0.35@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. Using the part will provide the power your application needs by requiring a voltage not exceeding 30 V. With a fixed output that has a voltage of 3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.2% and line regulation of 0.2%. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.08@100uA|0.45@100mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 3V 0.1A 3-Pin TO-92 Bag
Chip1Stop:
LDO Regulator Pos 3V 0.1A 3-Pin TO-92 Bag
TME:
Voltage regulator; LDO, linear, fixed; 3V; 0.1A; TO92; THT; ±1%
Verical:
LDO Regulator Pos 3V 0.1A 3-Pin TO-92 Bag
Newark:
# ON SEMICONDUCTOR LP2950CZ-3.0G Fixed LDO Voltage Regulator, 4V to 30V, 350mV Dropout, 3Vout, 100mAout, TO-92-3
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3V 100mA TO-92-3
工作电压 1.25V ~ 29V
额定电流 100 mA
无卤素状态 Halogen Free
输出接口数 1
输出电压 3 V
输出电流 100 mA
极性 P-Channel
跌落电压 350 mV
输入电压Max 30 V
输入电压Min 4 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤30 V
安装方式 Through Hole
引脚数 3
封装 TO-226-3
封装 TO-226-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2950CZ-3.0G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LP2950CZ-3.0 安森美 | 完全替代 | LP2950CZ-3.0G和LP2950CZ-3.0的区别 |
LP2950ACZ-3.0G 安森美 | 类似代替 | LP2950CZ-3.0G和LP2950ACZ-3.0G的区别 |
LP2950ACZ-3.0RAG 安森美 | 类似代替 | LP2950CZ-3.0G和LP2950ACZ-3.0RAG的区别 |
