LP3985IM5-2.8/NOPB

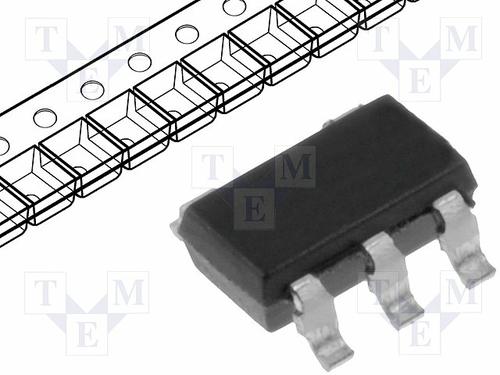

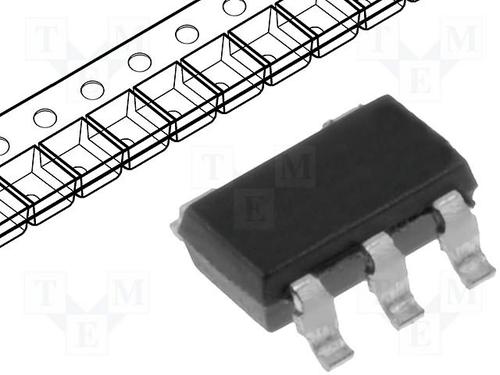

TEXAS INSTRUMENTS  LP3985IM5-2.8/NOPB  固定电压稳压器, LDO, 2.5V至6V, 60mV压差, 2.8V输出, 150mA输出, SOT-23-5

The is a 2.8V fixed output low-noise ultra-low-dropout LDO CMOS Linear Regulator. The device performance is optimized for battery-powered systems to deliver ultra-low noise, extremely low-dropout LDO voltage and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The device is stable with a small 1µF ±30% ceramic or high-quality tantalum output capacitor. An optional external bypass capacitor reduces the output noise without slowing down the load transient response. Fast startup time is achieved by utilizing an internal power-ON circuit that actively pre-charges the bypass capacitor. Power supply rejection is better than 50dB at low frequencies and starts to roll off at 1kHz. High power supply rejection is maintained down to low input voltage levels common to battery operated circuits.

.

50dB PSRR at 1kHz at VIN = VOUT + 0.2V

.

* 200µs typical Fast turn-ON time

.

30µVrms Output noise over 10Hz to 100kHz

.

Logic controlled enable

.

Stable with ceramic and high-quality tantalum capacitors

.

Fast turn-on

.

Thermal shutdown and short-circuit current limit

.

Green product and no Sb/Br
