TEXAS INSTRUMENTS LP2982IM5-5.0 固定电压稳压器, LDO, 2.1V至16V, 120mV压差, 5V输出, 50mA输出, SOT-23-5
The is a 5V fixed output low-dropout LDO Linear Regulator designed to provide ultra-low dropout and lower noise in battery powered applications. Using an optimized VIP Vertically integrated PNP process, the device delivers unequaled performance in all specifications critical to battery-powered designs, the dropout voltage is typically 120mV at 50mA load and 7mV at 1mA load. Ground pin current - typically 375µA at 50mA load and 80µA at 1mA load.
- .
- Requires minimum external components
- .
- <1µA Quiescent current when shutdown
- .
- Low ground pin current at all loads
- .
- High peak current capability 150mA typical
- .
- Low ZOUT 0.3R 10Hz to 1MHz
电源电压DC 16.0V max
额定电流 50.0 A
输出接口数 1
输入电压DC 16.0V max
输出电压 5 V
输出电流 50 mA

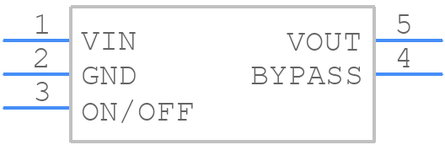

针脚数 5
静态电流 65.0 µA
跌落电压 120 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.1 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LP2982IM5-5.0 TI 德州仪器 | 当前型号 | 当前型号 |
LP2985AIM5-5.0/NOPB 德州仪器 | 完全替代 | LP2982IM5-5.0和LP2985AIM5-5.0/NOPB的区别 |
LP2982IM5-5.0/NOPB 德州仪器 | 完全替代 | LP2982IM5-5.0和LP2982IM5-5.0/NOPB的区别 |
LP2982AIM5-5.0/NOPB 德州仪器 | 完全替代 | LP2982IM5-5.0和LP2982AIM5-5.0/NOPB的区别 |
