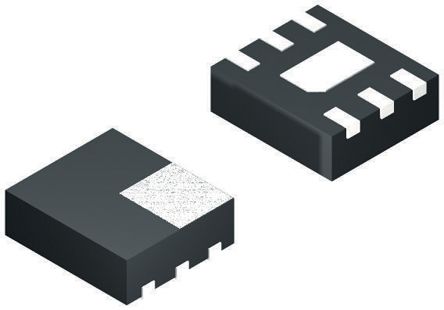

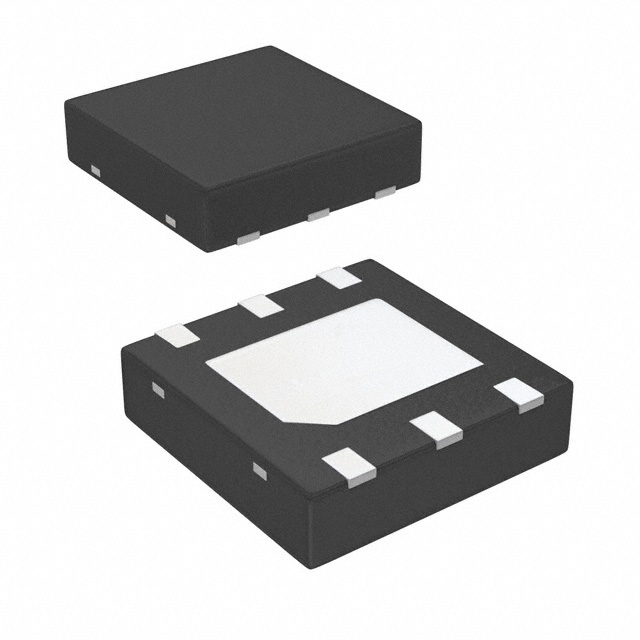

TEXAS INSTRUMENTS LP38692SD-3.3/NOPB 固定电压稳压器, LDO, 2.7V至10V, 650mV压差, 3.3V输出, 1A输出, WSON-6
LDO(低压降)线性稳压器,1A,LP3869x 系列,Texas Instruments
得捷:
IC REG LINEAR 3.3V 1A 6WSON
立创商城:
LP38692SD-3.3/NOPB
德州仪器TI:
1-A, 10-V, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性稳压器,1A,LP3869x 系列,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 2.7V至10V, 650mV压差, 3.3V输出, 1A输出, WSON-6
艾睿:
Keep the energy stable for every system by using this LDO LP38692SD-3.3/NOPB linear regulator by Texas Instruments. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.065@100mA|0.65@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 1.8%/ATyp and line regulation of 0.03%/VTyp your circuit is capable of maintaining a constant voltage level at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.11@100mA|1@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 1A 6-Pin LLP EP T/R
Chip1Stop:
LDO Regulator Pos 3.3V 1A 6-Pin WSON EP T/R
Verical:
LDO Regulator Pos 3.3V 1A 6-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS LP38692SD-3.3/NOPB Fixed LDO Voltage Regulator, 2.7V to 10V, 650mV Dropout, 3.3Vout, 1Aout, WSON-6
DeviceMart:
IC REG LDO 3.3V 1A 6-LLP
输出接口数 1
输入电压DC 10.0V max
输出电压 3.3 V
输出电流 1 A
供电电流 55µA ~ 100µA
针脚数 6
静态电流 0.001 mA
输出电容类型 Ceramic
跌落电压 650 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 6
封装 WDFN-6
长度 3 mm
宽度 3 mm
高度 0.86 mm
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP38692SD-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP38692SDX-3.3/NOPB 德州仪器 | 类似代替 | LP38692SD-3.3/NOPB和LP38692SDX-3.3/NOPB的区别 |
LP38692SDX-3.3 德州仪器 | 类似代替 | LP38692SD-3.3/NOPB和LP38692SDX-3.3的区别 |
LP38692SD-3.3 德州仪器 | 类似代替 | LP38692SD-3.3/NOPB和LP38692SD-3.3的区别 |
