LDO(低压降)线性电压调节器,最大 100mA,3.0V 至 3.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,最大 100mA,3.0V 至 3.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:
Texas Instruments LP2950-33LPE3 LDO 稳压器, 3.3 V输出, 100mA最大输出, 2%精确度, -0.3 to 30 V输入, 3引脚
得捷:
IC REG LINEAR 3.3V 100MA TO92-3
立创商城:
正 Vin=30V Vout=3.3V 100mA
德州仪器TI:
100-mA, 30-V, low-dropout voltage regulator with low IQ
e络盟:
TEXAS INSTRUMENTS LP2950-33LPE3 3.3V, 100mA Low Dropout Voltage Regulator in TO-92-3 Package
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO LP2950-33LPE3 linear regulator manufactured by Texas Instruments. Its typical dropout voltage at current is 0.05@100uA|0.38@100mA V. It has an overall accuracy of ±1.4 %. This voltage regulation device&s;s single output can produce a current up to 0.1 A. By only needing an input voltage of 2 V with a maximum of 30 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.2% and line regulation of 0.2%/V. This product comes packaged in bulk, so the parts will be stored loosely. The maximum dropout voltage is 0.08@100uA|0.45@100mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.1A 3-Pin TO-92 Bulk
Chip1Stop:
LDO Regulator Pos 3.3V 0.1A 3-Pin TO-92 Bulk
Verical:
LDO Regulator Pos 3.3V 0.1A 3-Pin TO-92 Bulk
Newark:
# TEXAS INSTRUMENTS LP2950-33LPE3 Fixed LDO Voltage Regulator, 3.7V to 30V, 380mV Dropout, 3.3Vout, 100mAout, TO-92-3
DeviceMart:
IC REG LDO 3.3V .1A TO92
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
供电电流 120µA ~ 14mA
针脚数 3
静态电流 0.075 mA
输出电容类型 Ceramic
跌落电压 380 mV
调节输出数 1
输入电压Max 30 V
输入电压Min 3.7 V
输出电压Min 3.3 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.4 %
输入电压 30V ~ 2V
安装方式 Through Hole
引脚数 3

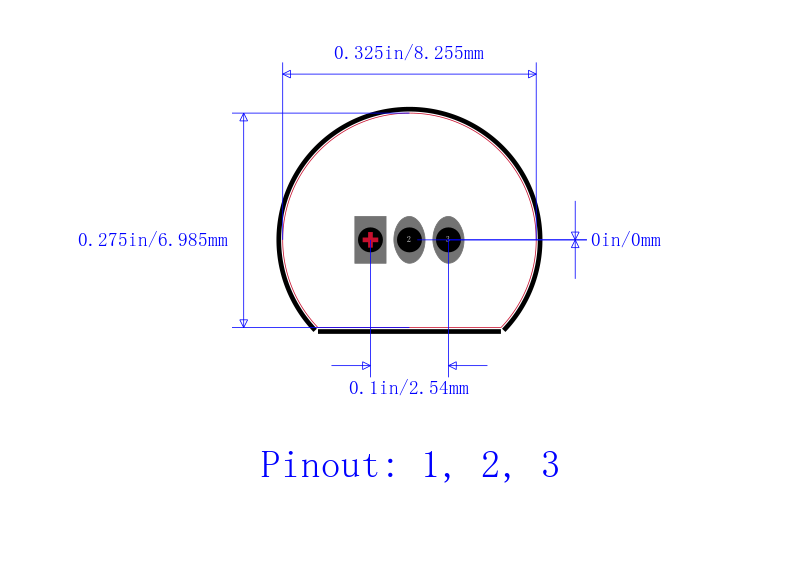

封装 TO-226-3
长度 5.21 mm
宽度 4.19 mm
高度 5.34 mm
封装 TO-226-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2950-33LPE3 TI 德州仪器 | 当前型号 | 当前型号 |
LP2950-33LPRE3 德州仪器 | 类似代替 | LP2950-33LPE3和LP2950-33LPRE3的区别 |
LP2950ACZ-5.0G 安森美 | 功能相似 | LP2950-33LPE3和LP2950ACZ-5.0G的区别 |
LP2950ACZ-3.3G 安森美 | 功能相似 | LP2950-33LPE3和LP2950ACZ-3.3G的区别 |
