TEXAS INSTRUMENTS LM5001SD/NOPB 直流-直流开关升压, 反激, SEPIC稳压器, 可调, 3.1V-75V输入, 1.26V-75V输出, 1A输出, WSON-8
The is a non-synchronous Switch-mode Regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75V N-channel MOSFET with a 1A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5MHz. The oscillator can also be synchronized to an external clock. Additional protection features include current limit, thermal shutdown, under-voltage lockout and remote shutdown capability.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
输出接口数 1
输出电压 1.26V ~ 75V
输出电流 1 A
针脚数 8
静态电流 3.10 mA
调节输出数 1
开关频率 1.5 MHz
开关电流 1 A
输入电压Max 75 V
输入电压Min 3.1 V
输出电压Max 75 V
输出电压Min 1.26 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3.1 V
输入电压 3.1V ~ 75V
安装方式 Surface Mount
引脚数 8

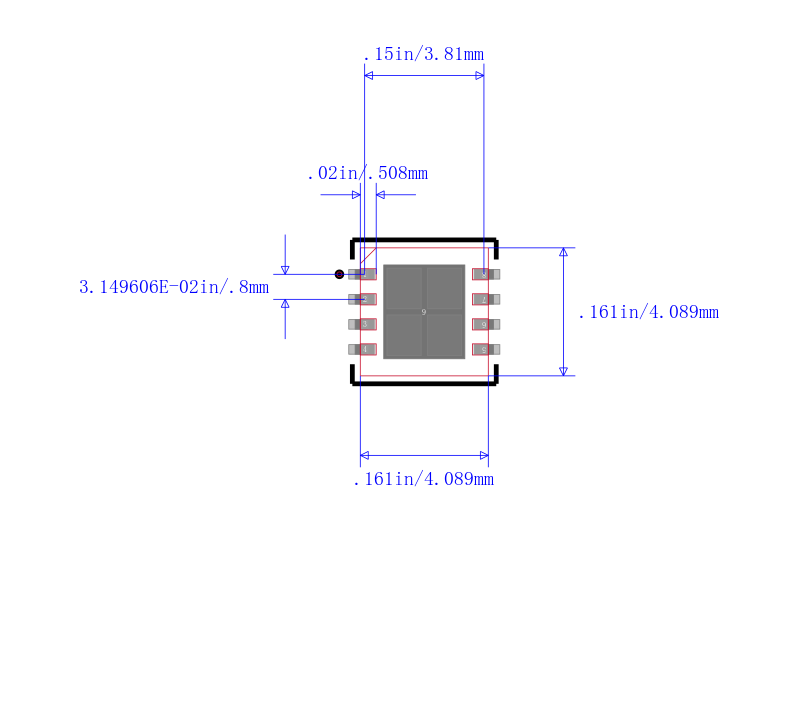

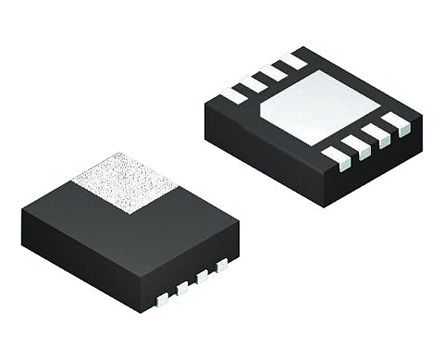

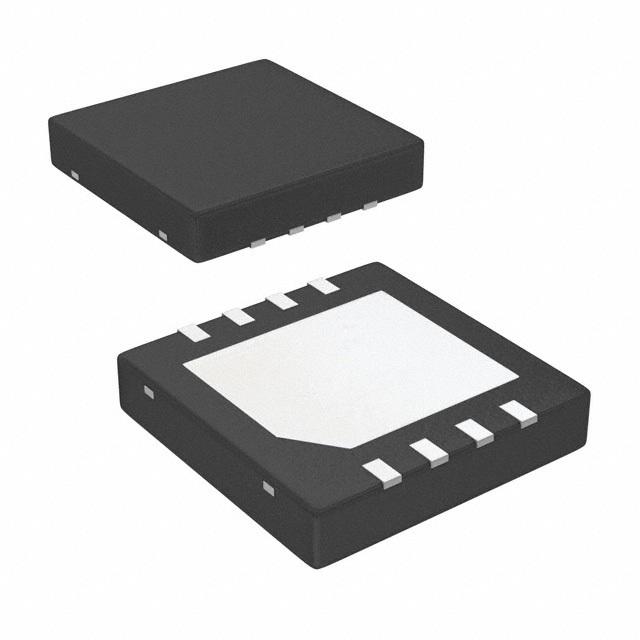

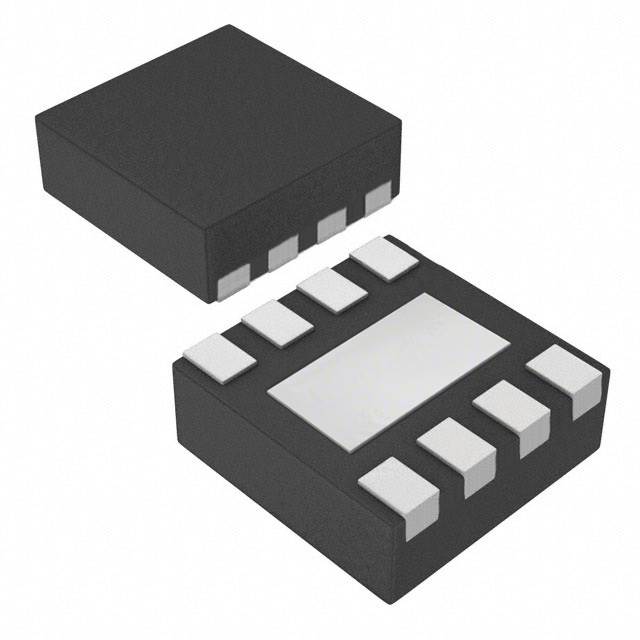

封装 WDFN-8
长度 4 mm
宽度 4 mm
高度 0.8 mm
封装 WDFN-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, 电源管理, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
