LP0115CMKW01A

NKK SWITCHES  LP0115CMKW01A  按钮开关, 非发光, SPDT, 3A, 黑色

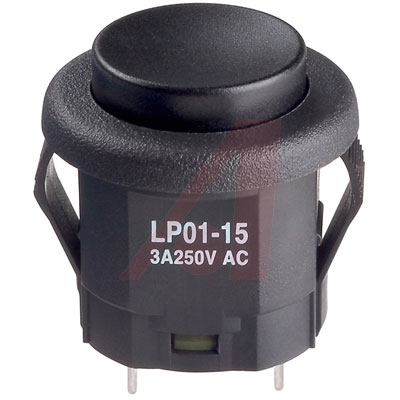

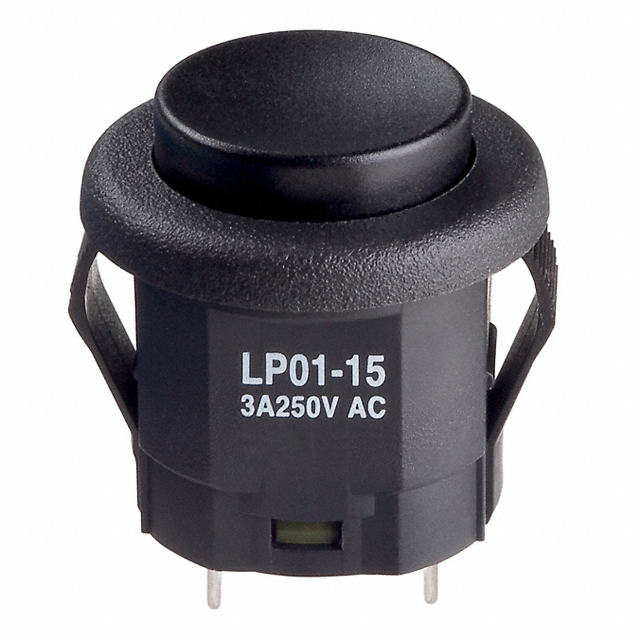

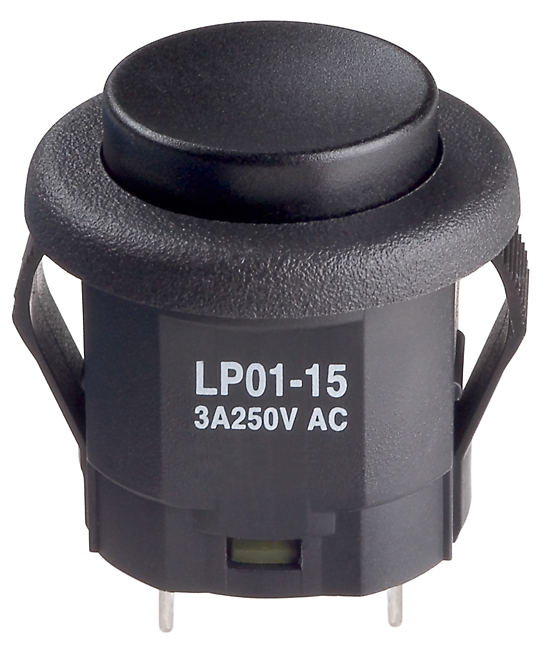

Short body pushbutton switch snap-mounts into panel hole.

艾睿:
Ideal for low current and low voltage circuits, this LP0115CMKW01A push button switch from NKK Switches will allow you to switch from connected to disconnected state. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 250VAC 30VDC. This push switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The LP0115CMKW01A push switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 20 mm long, 26.8 mm tall and 20 mm deep.

Allied Electronics:
Switch, Pushbutton; SPDT On On; 3A 125VAC; 17.2mm snap-in mnt; QC tabs; Black cap

Verical:
Switch Push Button ON ON SPDT Round Plunger 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug

Newark:
# NKK SWITCHES  LP0115CMKW01A  Pushbutton Switch, SPDT, On-On, 250 V, 30 V, 3 A, Quick Connect, Solder

Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANEL MOUNT
