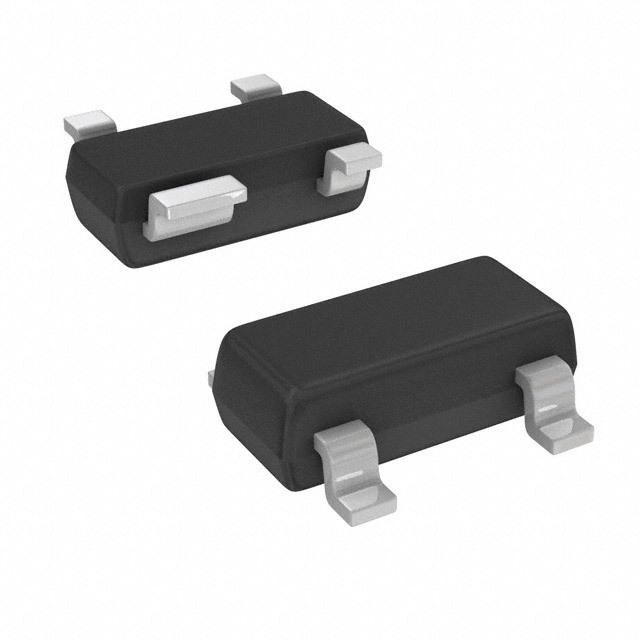

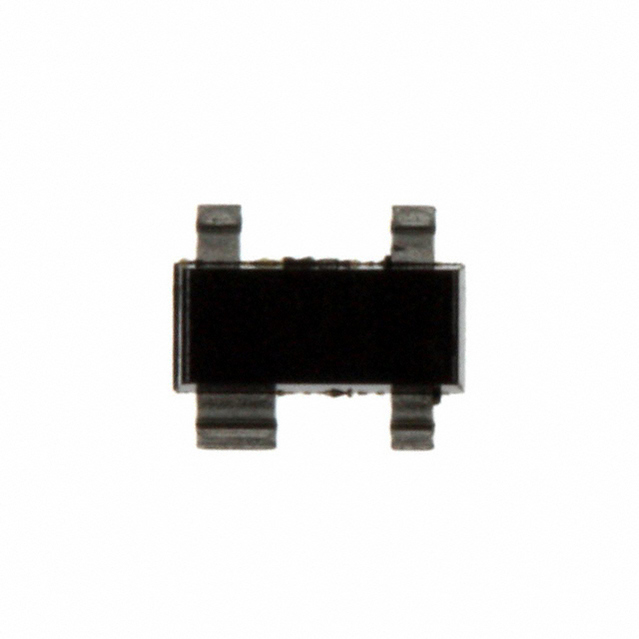

LCDA24C-1.TCT

SEMTECH  LCDA24C-1.TCT  TVS二极管, TVS, LCDA系列, 双向, 24 V, 50 V, SOT-143, 4 引脚

50V 夹子 10A（8/20µs） Ipp TVS - 表面贴装型 SOT-143

得捷:
TVS DIODE 24VWM 50VC SOT143-4

立创商城:
Vrwm:24V@Max 500W

贸泽:
ESD Suppressors / TVS Diodes TVS ARRAY LOW CAPACITANCE 15V

e络盟:
TVS二极管, 双向, 24 V, 50 V, SOT-143, 4 引脚

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this LCDA24C-1.TCT TVS diode from Semtech. Its test current is 1 mA. This device&s;s maximum clamping voltage is 50 V and minimum breakdown voltage is 26.7 V. Its peak pulse power dissipation is 500 W. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Chip1Stop:
Diode TVS Dual Uni-Dir 24V 500W 4-Pin 3+Tab SOT-143 T/R

Verical:
Diode TVS Dual Uni-Dir 24V 500W 4-Pin3+Tab SOT-143 T/R

Newark:
# SEMTECH  LCDA24C-1.TCT  TVS Diode, LCDA Series, Bidirectional, 24 V, 50 V, SOIC, 8 Pins

Online Components:
Diode TVS Dual Uni-Dir 24V 500W 4-Pin3+Tab SOT-143 T/R

Win Source:
TVS DIODE 24VWM 50VC SOT143
