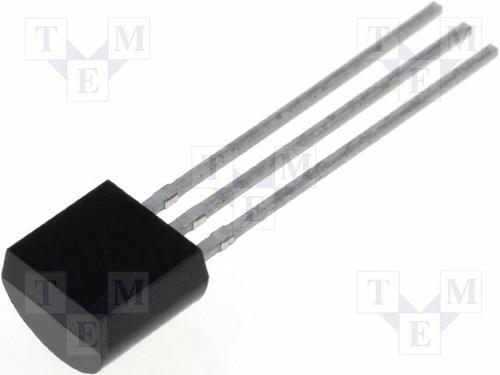

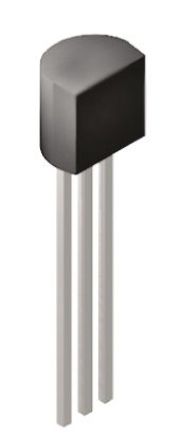

LM2931Z-5.0RAG

LM2931 系列 40 V 100 mA 通孔 LDO 稳压器 - TO-92

低压降 LDO 线性电压调节器，高达 120mA，

### LDO（低压降）线性稳压器，ON Semiconductor

低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR 5V 100MA TO92-3

欧时:
ON Semiconductor LM2931Z-5.0RAG LDO 稳压器, 5 V输出, 100mA最大输出, ±5%精确度, 最大为 40 V输入

立创商城:
LM2931Z-5.0RAG

艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LM2931Z-5.0RAG linear regulator from ON Semiconductor. It has an overall accuracy of ±5 %. Its typical dropout voltage at current is 0.015@10mA|0.16@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. Use this part at voltages lower than 40 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 50mV and line regulation of 30mV. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.2@10mA|0.6@100mA V.

Allied Electronics:
LM2931Z-5.0RAG, LDO VoltageRegulator, 100mA, 5V +/-5%, Maximum of 40 Vin, 3-Pin TO-92

安富利:
LDO Regulator Pos 5V 0.1A 3-Pin TO-92 T/R

TME:
Voltage regulator; LDO, linear, fixed; 5V; 0.1A; TO92; THT; ±5%

Verical:
LDO Regulator Pos 5V 0.1A 3-Pin TO-92 T/R

DeviceMart:
IC REG LDO 5V .1A TO-92
