LDO(低压降)线性电压调节器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments
得捷:
IC REG LINEAR 1.5V 150MA SOT23-5
德州仪器TI:
150-mA, 16-V, low-dropout voltage regulator with enable and low VOUT
欧时:
### LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
TEXAS INSTRUMENTS LP2985AIM5-1.5/NOPB 固定电压稳压器, LDO, 2.2V至16V, 280mV压差, 1.5V输出, 150mA输出, SOT-23-5
艾睿:
Use this LDO LP2985AIM5-1.5/NOPB linear regulator from Texas Instruments to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.12@50mA|0.28@150mA V. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.2 V and no higher than 16 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. At a line regulation of 0.014%/V a constant current can be produced at the output of your circuit. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.15@50mA|0.35@150mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Newark:

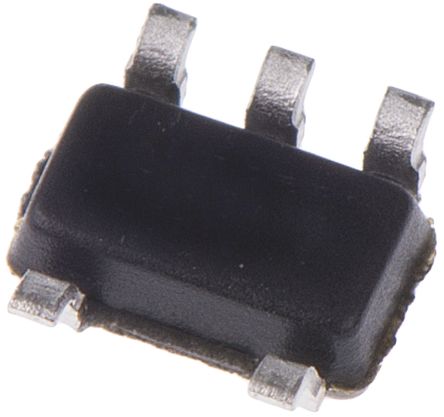

# TEXAS INSTRUMENTS LP2985AIM5-1.5/NOPB Fixed LDO Voltage Regulator, 2.2V to 16V, 280mV Dropout, 1.5Vout, 150mAout, SOT-23-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 150mA SOT-23-5
输出接口数 1
输出电压 1.5 V
输出电流 150 mA

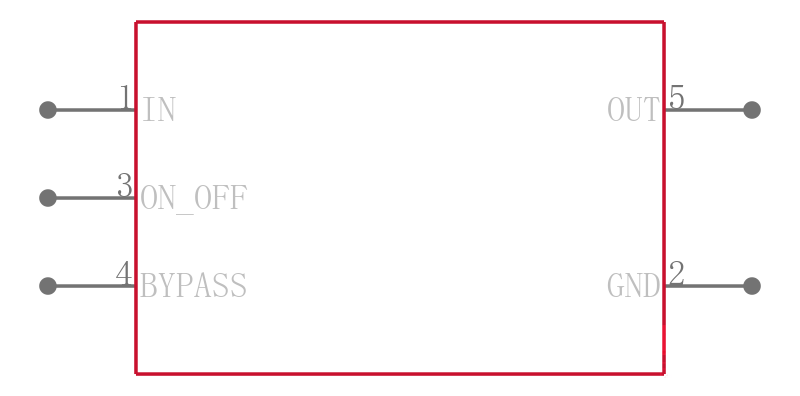

针脚数 5
静态电流 0.065 mA
输出电容类型 Ceramic
跌落电压 280 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.2 V
输出电压Min 1.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 2.2V ~ 16V
安装方式 Surface Mount
引脚数 5

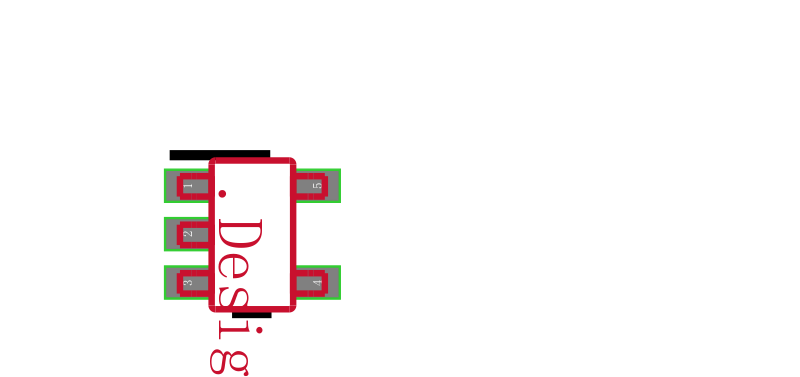

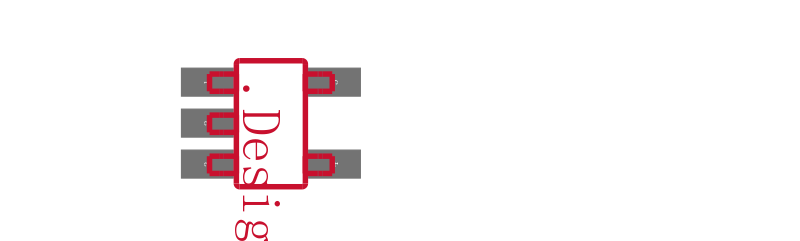

封装 SOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2985AIM5-1.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2985AIM5-1.5 德州仪器 | 类似代替 | LP2985AIM5-1.5/NOPB和LP2985AIM5-1.5的区别 |
