LM78L05ACZ/LFT1

LM78LXX系列三端稳压器正 LM78LXX Series 3-Terminal Positive Regulators

DESCRIPON

The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the LM78LXX to be used in logic systems, instrumentation, HiFi, and other solid state electronic equipment.

FEATURES

• LM78L05 in DSBGA Package

• Output Voltage Tolerances of ±5% Over the Temperature Range

• Output Current of 100mA

• Internal Thermal Overload Protection

• Output Transistor Safe Area Protection

• Internal Short Circuit Current Limit

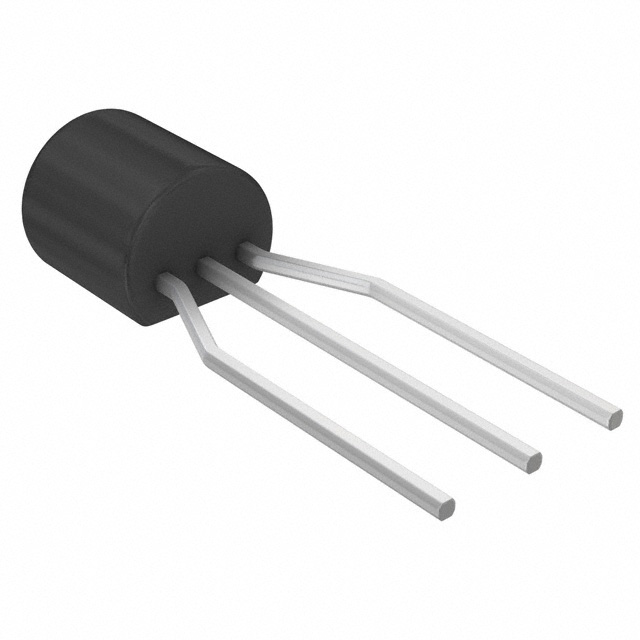

• Available in TO-92 and SOIC-8 Low Profile Packages

• No External Components

• Output Voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V

• See AN-1112 SNVA009 for DSBGA Considerations
