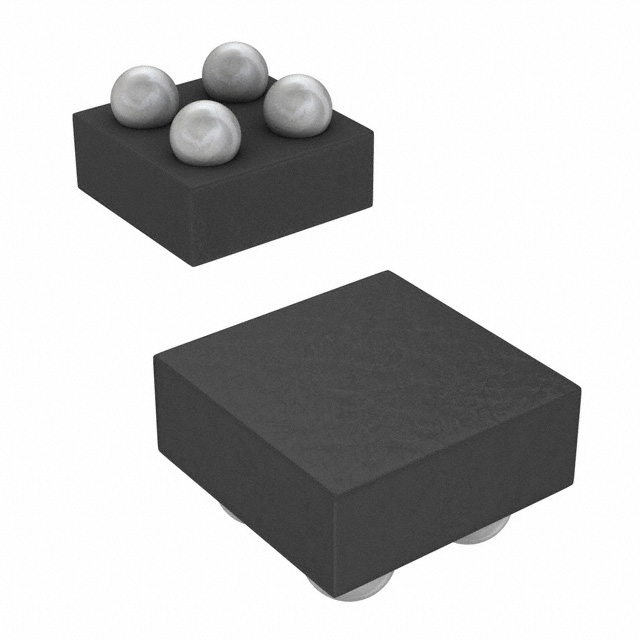

TEXAS INSTRUMENTS LP5907UVE-4.5/NOPB 固定电压稳压器, LDO, 2.2V至5.5V, 120mV压差, 4.5V输出, 250mA输出, DSBGA-4
* Input Voltage Range: 2.2 V to 5.5 V * Output Voltage Range: 1.2 V to 4.5 V * Output Current: 250 mA * Stable with 1-µF Ceramic Input and Output Capacitors * No Noise Bypass Capacitor Required * Remote Output Capacitor Placement * Thermal-Overload and Short-Circuit Protection * –40°C to 125°C Junction Temperature Range for Operation * Low Output Voltage Noise: RMS * PSRR: 82 dB at 1 kHz * Output Voltage Tolerance: ±2% * Virtually Zero IQ Disabled: * Very Low IQ Enabled: 12 µA * Start-up Time: 80 µs * Low Dropout: 120 mV typical
输出接口数 1
输出电压 4.5 V
输出电流 250 mA
针脚数 4
静态电流 0.012 mA
输出电容类型 Ceramic
跌落电压 120 mV
调节输出数 1
过温保护 Yes
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4
封装 XFBGA-4
封装 XFBGA-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP5907UVE-4.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP5907UVX-4.5/NOPB 德州仪器 | 类似代替 | LP5907UVE-4.5/NOPB和LP5907UVX-4.5/NOPB的区别 |
