0805 2.2uF ±10% 10V X5R
2.2µF ±10% 10V Ceramic Capacitor X5R 0805 2012 Metric
得捷:
CAP CER 2.2UF 10V X5R 0805
艾睿:

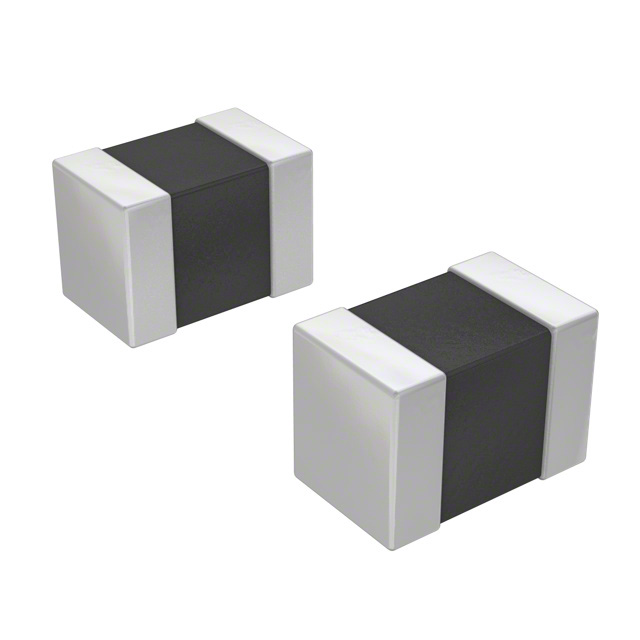

This LD05ZD225KAB2A multilayer ceramic capacitor from AVX is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 10%. This product is 2.01 mm long, 1.4Max mm tall and 1.25 mm deep. Its capacitance value is 2.2uF.
Verical:
Cap Ceramic 2.2uF 10V X5R 10% SMD 0805 85C T/R
额定电压DC 10.0 V
电容 2.2 μF
容差 ±10 %
电介质特性 X5R
产品系列 LICC
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.01 mm
宽度 1.25 mm
高度 1.4 mm
封装公制 2012
封装 0805
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD05ZD225KAB2A AVX 艾维克斯 | 当前型号 | 当前型号 |
GRM216R61A225KE24D 村田 | 功能相似 | LD05ZD225KAB2A和GRM216R61A225KE24D的区别 |
CC0805KRX5R6BB225 国巨 | 功能相似 | LD05ZD225KAB2A和CC0805KRX5R6BB225的区别 |
C2012X5R1A225K 东电化 | 功能相似 | LD05ZD225KAB2A和C2012X5R1A225K的区别 |
