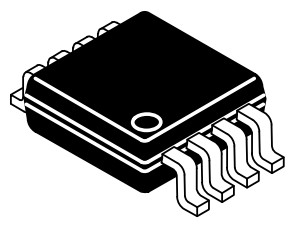

LP2951CDM-3.3R2G

100mA,具有出错信号输出

PMIC - 稳压器 - 线性 正 固定 输出 100mA Micro8™

得捷:
IC REG LINEAR 3.3V 100MA MICRO8

立创商城:
LP2951CDM-3.3R2G

e络盟:
固定LDO稳压器, 4.3 V至30 V输入, 560 mV压降, 3.3 V/100 mA输出, MSOP-8

艾睿:
Control the voltage level of your circuit with this LDO LP2951CDM-3.3R2G linear regulator from ON Semiconductor. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.03@100uA|0.35@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. Supply your circuit with sufficient power by implementing this, which does not exceed 30 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.2% and line regulation of 0.2%. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.08@100uA|0.45@100mA V.

安富利:
LDO Regulator Pos 3.3V 0.1A 8-Pin Micro T/R

Chip1Stop:
LDO Regulator Pos 3.3V 0.1A 8-Pin Micro T/R

Verical:
LDO Regulator Pos 3.3V 0.1A 8-Pin Micro T/R

力源芯城:
低功耗100mA,具有出错信号输出

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 100mA Micro8
