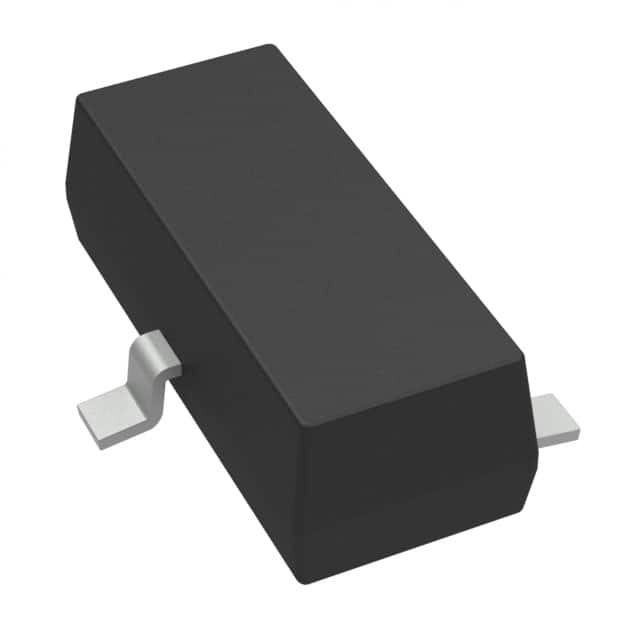

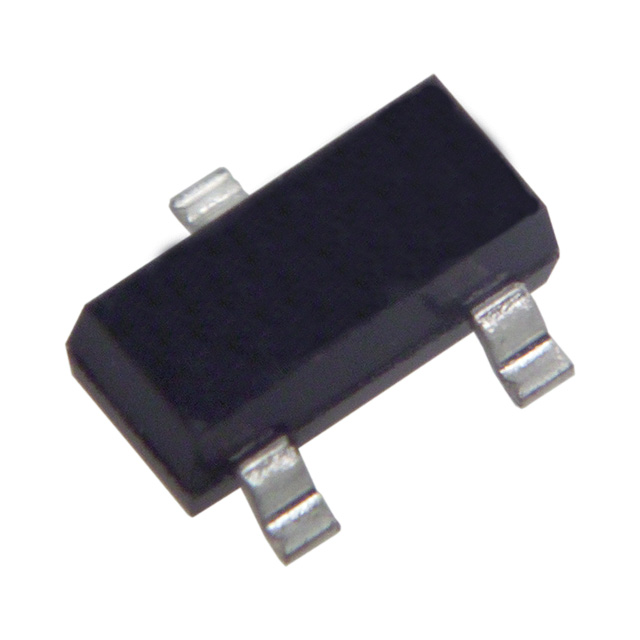

TEXAS INSTRUMENTS LM4041C12IDBZR.. 芯片, 精密并联电压基准, 1.2V, 0.5%, 微功率, SOT-23-3
分流器 电压基准 IC ±0.5% SOT-23-3
得捷:
IC VREF SHUNT 0.5% SOT23-3
立创商城:
并联 1.225V 12mA
德州仪器TI:
1.2-V precision micropower shunt voltage reference with 0.5% accuracy
贸泽:
Voltage References 1.2-V Precision Mcrpwr Shunt .5% acc
e络盟:
电压基准, 精准, 微功率, 并联 - 固定, LM4041系列, 1.225V, SOT-23-3
艾睿:
Even in the event of large power supply variations, this LM4041C12IDBZR voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. It has an initial accuracy of 0.5%. With an output that has a voltage of 1.225 V, this is power management at its best. This voltage reference circuit supports shunt topology. A load regulation of 6mV is necessary for providing a constant voltage level at your output. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C. It runs with a maximum temperature coefficient of 20ppm/°CTyp.
安富利:
V-Ref Precision 1.225V 12mA 3-Pin SOT-23 T/R
Chip1Stop:
V-Ref Precision 1.225V 12mA 3-Pin SOP T/R
Verical:
V-Ref Precision 1.225V 12mA Automotive 3-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS LM4041C12IDBZR Voltage Reference, Precision Micropower, Shunt - Fixed, LM4041 Series, 1.225V, SOT-23-3
DeviceMart:
IC VREF SHUNT PREC 1.225V SOT23
容差 ±0.5 %
输入电压DC 10.0 V
输出电压 1.225 V
输出电流 12 mA
通道数 1
针脚数 3
输入电压Max 10 V
输入电压Min 10 V
输出电压Max 1.225 V
输出电压Min 1.225 V
输出电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.5 %
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 测试与测量, 车用, 自动化与过程控制, 电源管理, 便携式器材, 计量, 传感与仪器, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4041C12IDBZR TI 德州仪器 | 当前型号 | 当前型号 |
LM4041D12IDBZR 德州仪器 | 完全替代 | LM4041C12IDBZR和LM4041D12IDBZR的区别 |
LM4041A12IDBZR 德州仪器 | 完全替代 | LM4041C12IDBZR和LM4041A12IDBZR的区别 |
LM4041C12QDBZR 德州仪器 | 完全替代 | LM4041C12IDBZR和LM4041C12QDBZR的区别 |
