具有旁路和使能功能的 150mA、低压降稳压器 5-DSBGA -40 to 125
Linear Voltage Regulator IC 1 Output 150mA 5-DSBGA 1.41x1.08
得捷:
IC REG LINEAR 2.5V 150MA 5DSBGA
立创商城:
LP3985ITLX-2.5/NOPB
德州仪器TI:
150-mA, low-dropout voltage regulator with bypass & enable
贸泽:
LDO Voltage Regulators Micropower, 150mA Low-Noise Ultra Low-Dropout CMOS Voltage Regulator 5-DSBGA -40 to 125
艾睿:
This LDO LP3985ITLX-2.5/NOPB linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.0004@1mA|0.02@50mA|0.045@100mA|0.06@150mA V. This device has a maximum power dissipation of 244 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 6 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Its maximum power dissipation is 244 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.002@1mA|0.035@50mA|0.07@100mA|0.1@150mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 2.5V 0.15A 5-Pin uSMD T/R
Chip1Stop:
LDO Regulator Pos 2.5V 0.15A 5-Pin DSBGA T/R
Verical:
LDO Regulator Pos 2.5V 0.15A 5-Pin DSBGA T/R
DeviceMart:
IC REG LDO 2.5V .15A 5USMD
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 150mA 5-DSBGA
输出接口数 1
输出电压 2.5 V
输出电流 150 mA
耗散功率 244 mW
静态电流 85.0 µA
输出电容类型 Ceramic
跌落电压 0.06V @150mA
调节输出数 1
输入电压Max 6 V
输入电压Min 2.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 244 mW
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5

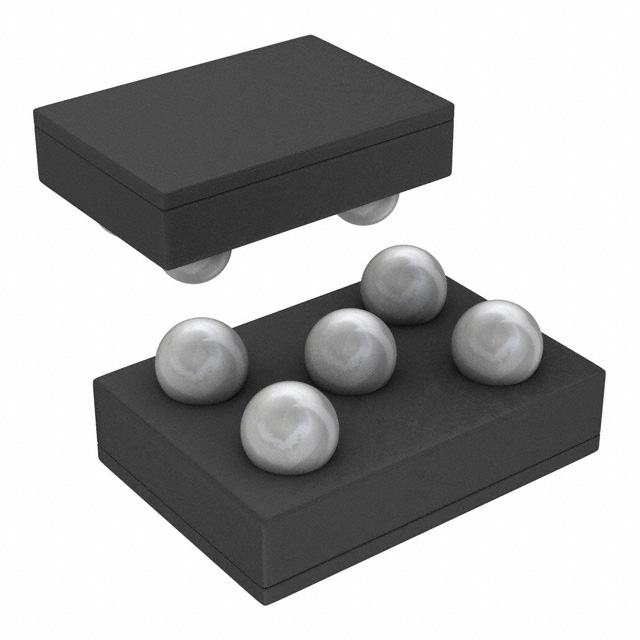

封装 DSBGA-5
封装 DSBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3985ITLX-2.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3985ITL-2.5/NOPB 德州仪器 | 完全替代 | LP3985ITLX-2.5/NOPB和LP3985ITL-2.5/NOPB的区别 |
TPS79325DBVR 德州仪器 | 类似代替 | LP3985ITLX-2.5/NOPB和TPS79325DBVR的区别 |
LP3985ITLX-2.5 德州仪器 | 类似代替 | LP3985ITLX-2.5/NOPB和LP3985ITLX-2.5的区别 |
