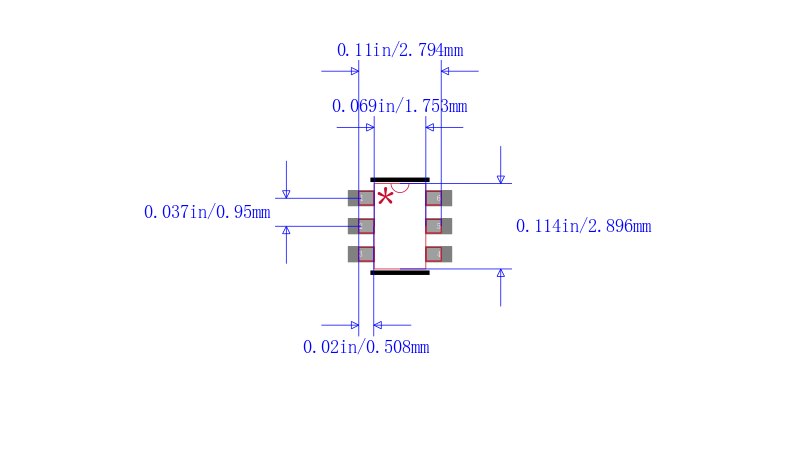

LINEAR TECHNOLOGY LT6230IS6-10#PBF 运算放大器, 单路, 1.45 GHz, 1个放大器, 320 V/µs, 3V 至 12.6V, TSOT-23, 6 引脚
The is a single low noise rail-to-rail output unity-gain stable Operational Amplifier that feature 1.1nV/√Hz noise voltage and draw only 3.5mA of supply current per amplifier. The amplifier combine very low noise and supply current with a 215MHz gain bandwidth product, a 70V/µs slew rate and are optimized for low supply voltage signal conditioning systems. The LT6230-10 is a single amplifier optimized for higher gain applications resulting in higher gain bandwidth and slew rate. The LT6230 and LT6230-10 include an enable pin that can be used to reduce the supply current to less than 10µA. The amplifier family has an output that swings within 50mV of either supply rail to maximize the signal dynamic range in low supply applications and is specified on 3.3, 5 and ±5V supplies. The en • √ISUPPLY product of 1.9 per amplifier is among the most noise efficient of any op amp.
- .
- 115dB Typical common mode rejection ratio
- .
- 30mA Output current
- .
- Specified on 5 and ±15V supplies
- .
- 1000V/mV High voltage gain
- .
- No phase reversal
- .
- No supply sequencing problems
