LME49860MA

LME49860MA图片1
LME49860MA图片2
LME49860MA图片3
LME49860MA图片4
LME49860MA概述

TEXAS INSTRUMENTS  LME49860MA  音频功率放大器, 2通道, ± 2.5V 至 ± 22V, SOIC, 8 引脚

The is an ultra-low distortion low noise high slew rate Operational Amplifier optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LME49860 audio operational amplifier delivers superior audio signal amplification for outstanding audio performance. The LME49860 combines extremely low voltage noise density 2.7nV/√Hz with vanishingly low THD+N 0.00003% to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49860 has a high slew rate of ±20V/µs and an output current capability of ±26mA. Further, dynamic range is maximized by an output stage that drives 2kR loads to within 1V of either power supply voltage and to within 1.4V when driving 600R loads.

.
Output short-circuit protection
.
PSRR and CMRR exceed 120dB typical
.
2.7nV/√Hz typical Input noise density
.
±20V/µs typical Slew rate
.
55MHz typical Gain bandwidth
.
140dB typical Open loop gain RL=600R
.
10nA typical Input bias current
.
0.1mV typical Input offset voltage
.
0.000009% DC gain linearity error
.
Green product and no Sb/Br
LME49860MA中文资料参数规格
技术参数

输出电流 37.0 mA

电路数 2

通道数 2

针脚数 8

转换速率 20.0 V/μs

工作温度Max 85 ℃

工作温度Min -40 ℃

增益带宽 55 MHz

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC

外形尺寸

封装 SOIC

其他

产品生命周期 Active

包装方式 Each

制造应用 多媒体, 工业, 音频

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

LME49860MA引脚图与封装图

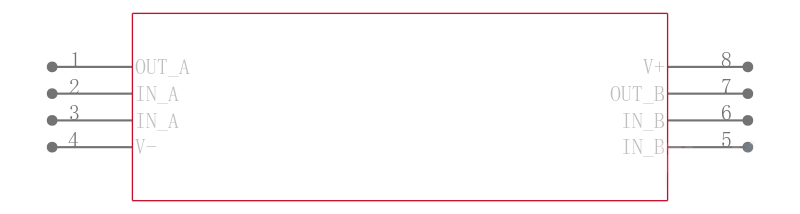

LME49860MA引脚图
LME49860MA封装图
LME49860MA封装焊盘图
在线购买LME49860MA
型号: LME49860MA
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  LME49860MA  音频功率放大器, 2通道, ± 2.5V 至 ± 22V, SOIC, 8 引脚
替代型号LME49860MA
型号/品牌 代替类型 替代型号对比

LME49860MA

TI 德州仪器

当前型号

当前型号

LME49860MA/NOPB

德州仪器

完全替代

LME49860MA和LME49860MA/NOPB的区别

LME49860MAX/NOPB

德州仪器

功能相似

LME49860MA和LME49860MAX/NOPB的区别
