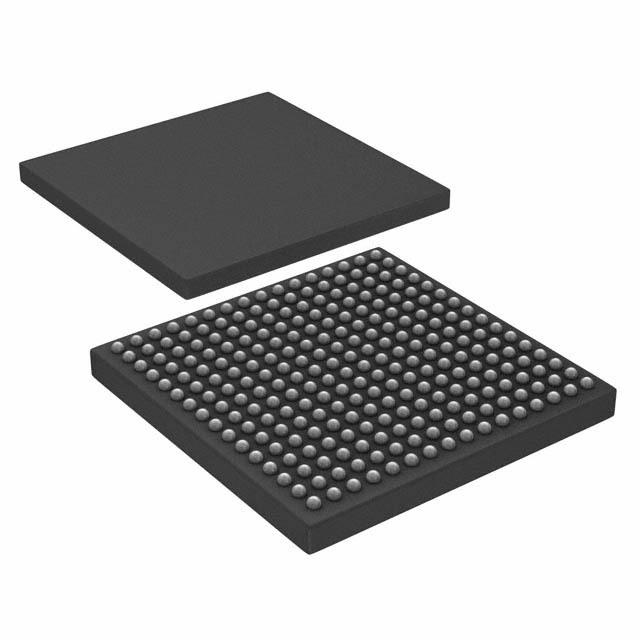

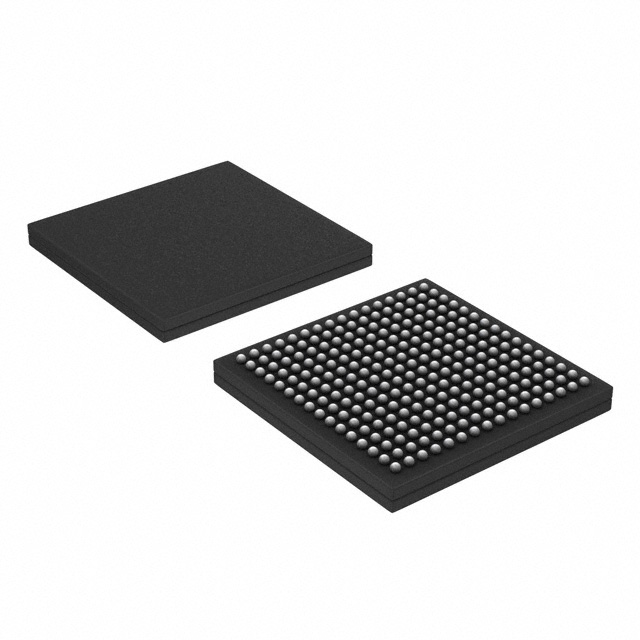

NXP LPC4357FET256,551 微控制器, 32位, ARM 皮质-M4, 204 MHz, 1 MB, 136 KB, 256 引脚, LBGA
The is a dual-core Cortex-M4 Digital Signal Controller designed for embedded applications requiring signal processing. The ARM Cortex-M4 core offers single-cycle multiply-accumulate and SIMD instructions and a hardware floating-point unit to support signal processing while the M0 coprocessor handles I/O and digital control processing. The microcontroller includes 1MB flash memory, 136kB of data memory, two high speed USB 2.0 host/OTG/devices, advanced configurable peripherals such as the state configurable timer SCT, serial general purpose I/O SGPIO and SPI flash interface SPIFI as well as Ethernet, an external memory controller and multiple digital and analogue peripherals.
频率 204 MHz
电源电压DC 2.20V min
针脚数 256
时钟频率 204 MHz
RAM大小 136 KB
位数 32
FLASH内存容量 1024 KB
模数转换数ADC 2
输入/输出数 164 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1500 mW
数模转换数DAC 1
电源电压 2.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.2 V
引脚数 256
封装 LBGA-256
封装 LBGA-256
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 工业, 计量, Industrial, 消费电子产品, Consumer Electronics, Metering
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LPC4357FET256,551 NXP 恩智浦 | 当前型号 | 当前型号 |
LPC4357JET256,551 恩智浦 | 类似代替 | LPC4357FET256,551和LPC4357JET256,551的区别 |
